NocoDB

ToolJet lets you connect with NocoDB to perform actions and retrieve data.

Connection​

To connect to the NocoDB data source in ToolJet, you can either click on the + Add new data source button on the query panel or navigate to the Data Source page on the ToolJet Dashboard.

ToolJet allows you to connect to your NocoDB by two methods.They are NocoDB Cloud and Self Hosted.

NocoDB Cloud​

Connect to the managed NocoDB Cloud service using an API token, with hosting and infrastructure fully handled by NocoDB.

NocoDB cloud connection

Self-Hosted NocoDB​

Connect to a self-hosted NocoDB instance by providing the API token and the base URL of your deployment.

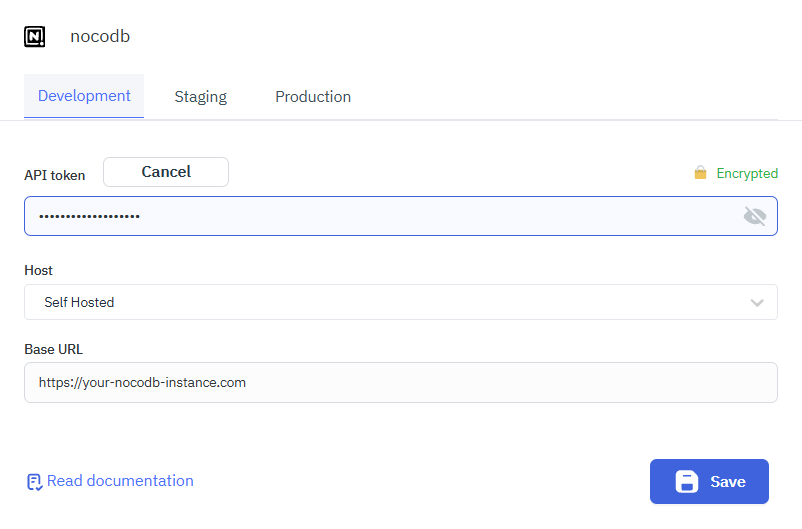

NocoDB self hosted connection

Supported Operations​

ToolJet supports the following operations for NocoDB:

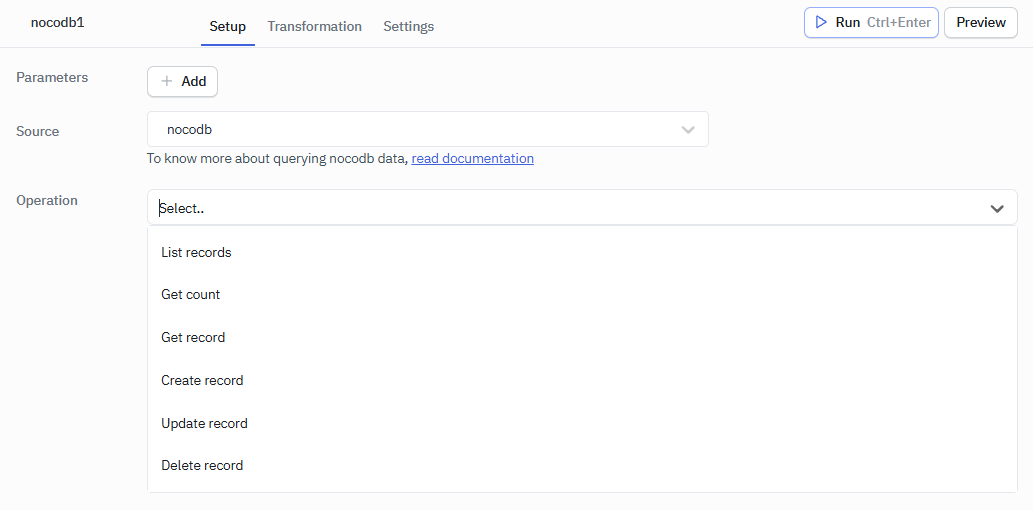

NocoDB supported operations

List Records​

This operation retrieves a list of records present in the specified table.

Required Parameters​

  • Table ID

Optional Parameters​

  • Query String

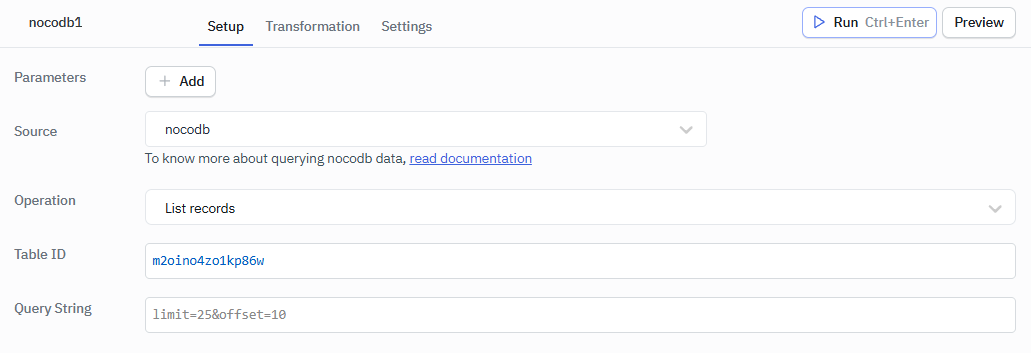

NocoDB List Records
Example Values
Table ID: your-table-id

Get Count​

This operation can be used to fetch the number of records present in the table.

Required Parameters​

  • Table ID

Optional Parameters​

  • Query String

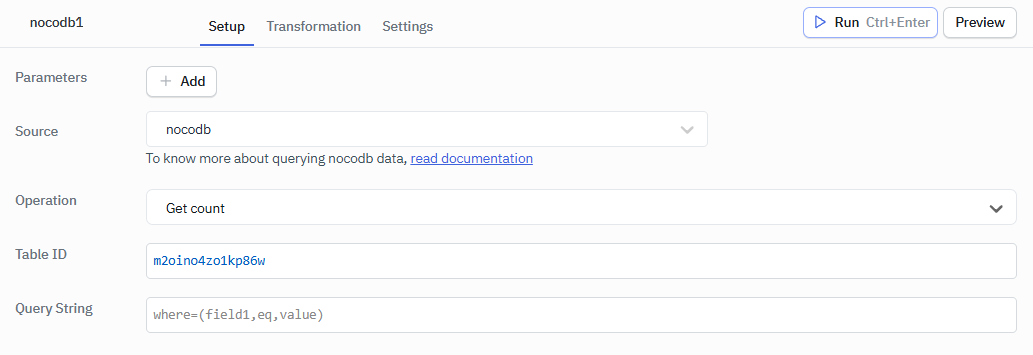

NocoDB Get Count
Example Values
Table ID: your-table-id

Get Record​

This operation can be used to fetch the record specified by the Table ID and Row ID.

Required Parameters​

  • Table ID
  • Row ID

Optional Parameters​

  • Query String

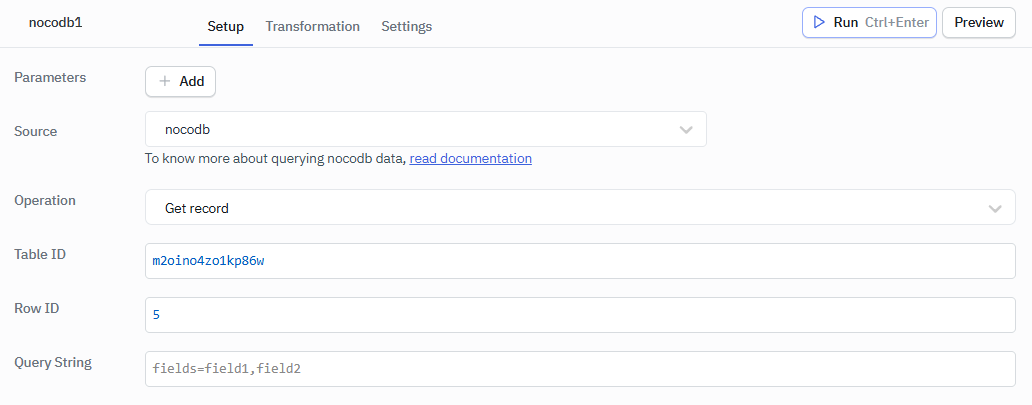

NocoDB Get Record
Example Values
Table ID: your-table-id
Row ID: your-row-id

Create Record​

This operation can be used to create new records.

Required Parameters​

  • Table ID
  • Records

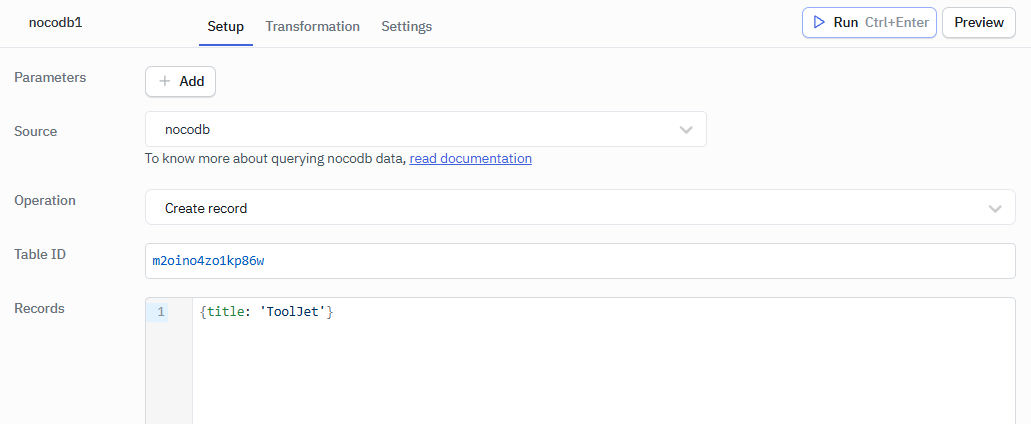

NocoDB Create Record
Example Values
Table ID: your-table-id
Records: {title: 'ToolJet'}

Update Record​

This operation can be used to update the record.

Required Parameters​

  • Table ID
  • Row ID
  • Records
NocoDB Update Record
Example Values
Table ID: your-table-id
Row ID: your-row-id
Records: {title: 'NocoDB'}

Delete Record​

This operation can be used to delete a record.

Required Parameters​

  • Table ID
  • Row ID

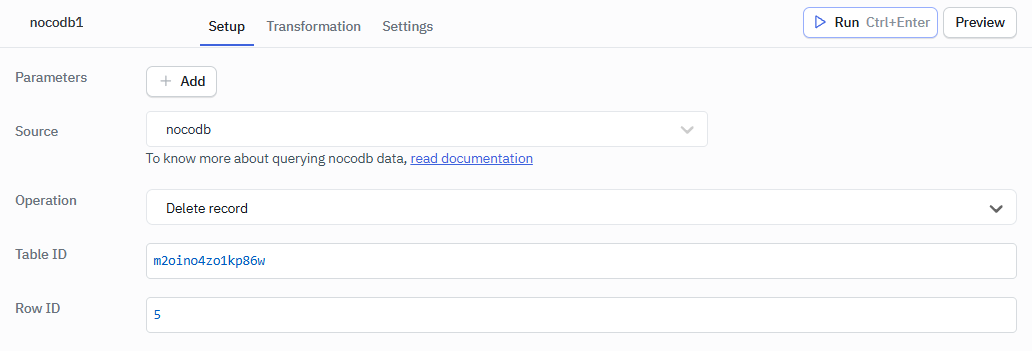

NocoDB Delete Record
Example Values
Table ID: your-table-id
Row ID: your-row-id
