Athena

ToolJet can connect to Amazon Athena which is an interactive query service that makes it easy to analyze data in Amazon S3 using standard SQL.

Connection​

To establish a connection with the Amazon Athena data source, you can either click on the + Add new Data source button located on the query panel or navigate to the Data Sources page from the ToolJet dashboard and choose Amazon Athena as the data source.

ToolJet requires the following to connect to your Athena.

  • Database
  • S3 output location
  • Access key
  • Secret key
  • Region
info

You can also configure for additional optional parameters.

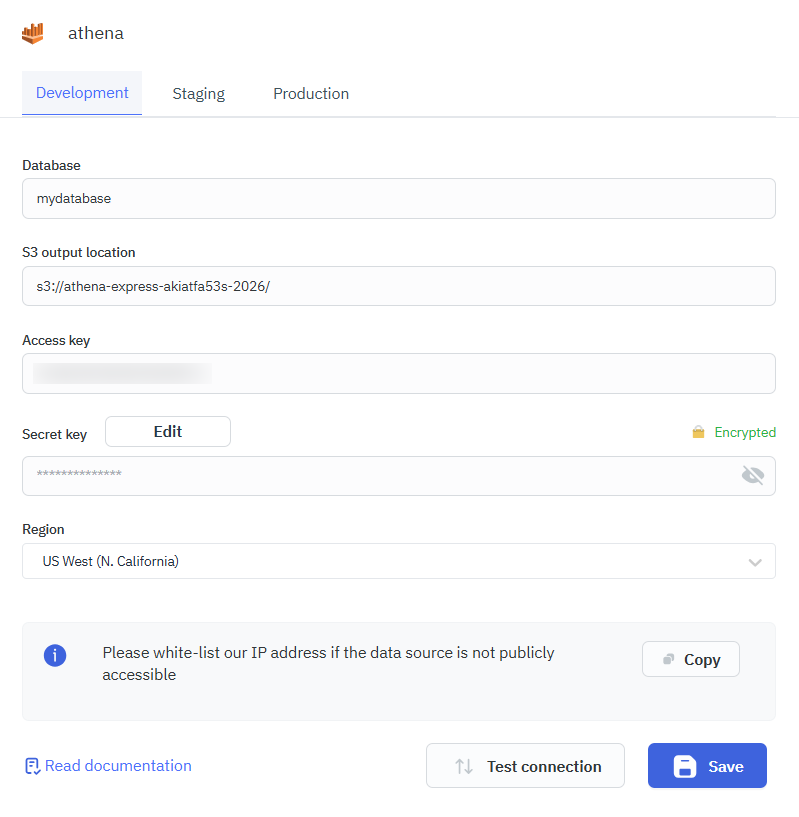

Athena connection

Querying Amazon Athena​

  1. Click on + Add button of the query manager at the bottom panel of the editor.
  2. Select the Amazon Athena datasource added in previous step.
  3. Select the SQL Query from the dropdown and enter the query.
  4. Click on the Preview button to preview the output or Click on the Run button to trigger the query.
tip

Refer amazon athena docs here for more info: link

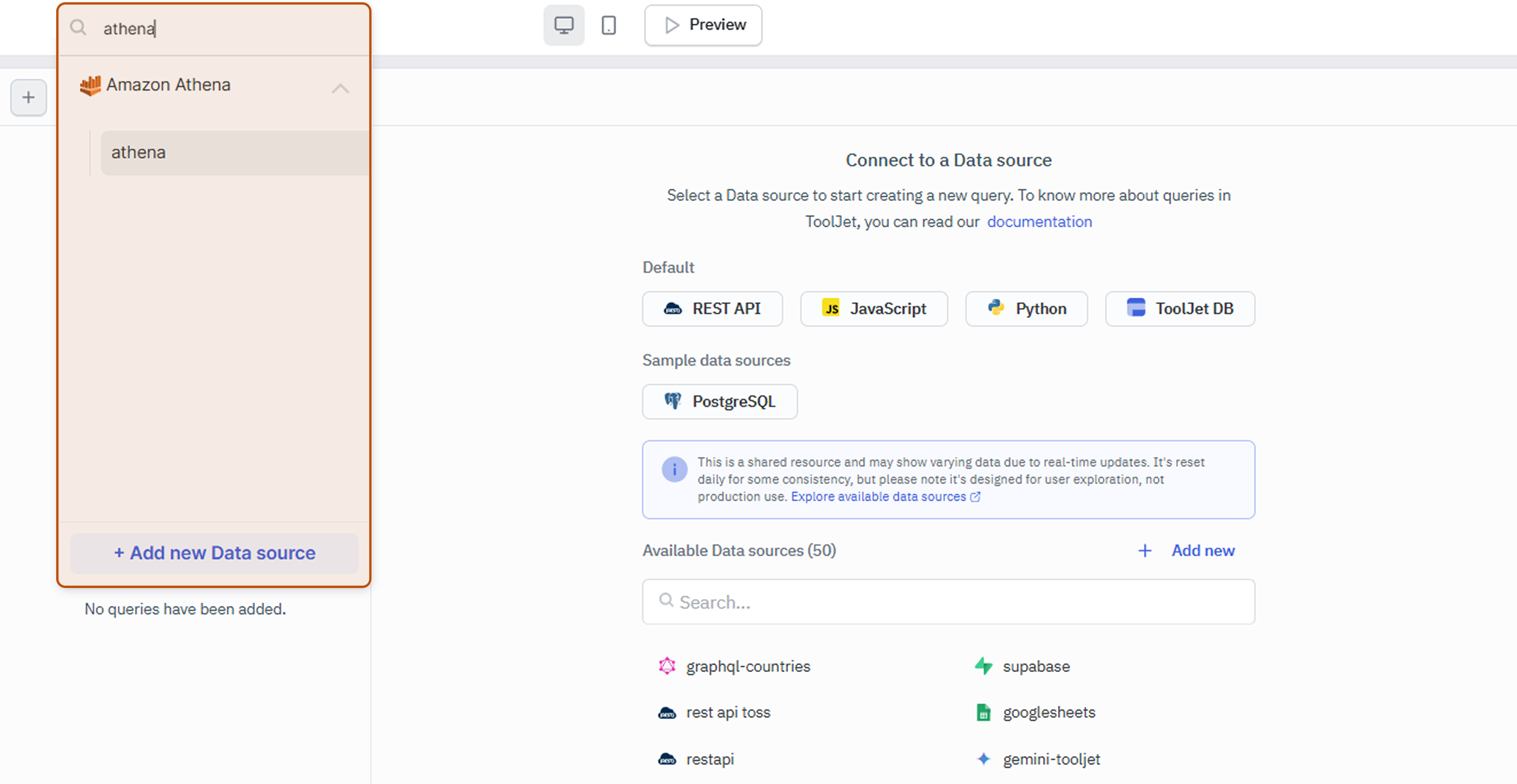

Athena connection

Basic Queries​

Creating Table​

This query is used to create an external table within the database. The data for this table is stored in an S3 bucket at the provided URL (s3://athena-express-akiatfa53s-2022/ in this example).

CREATE EXTERNAL TABLE student (
    name STRING,
    age INT
)  LOCATION 's3://athena-express-akiatfa53s-2022/';

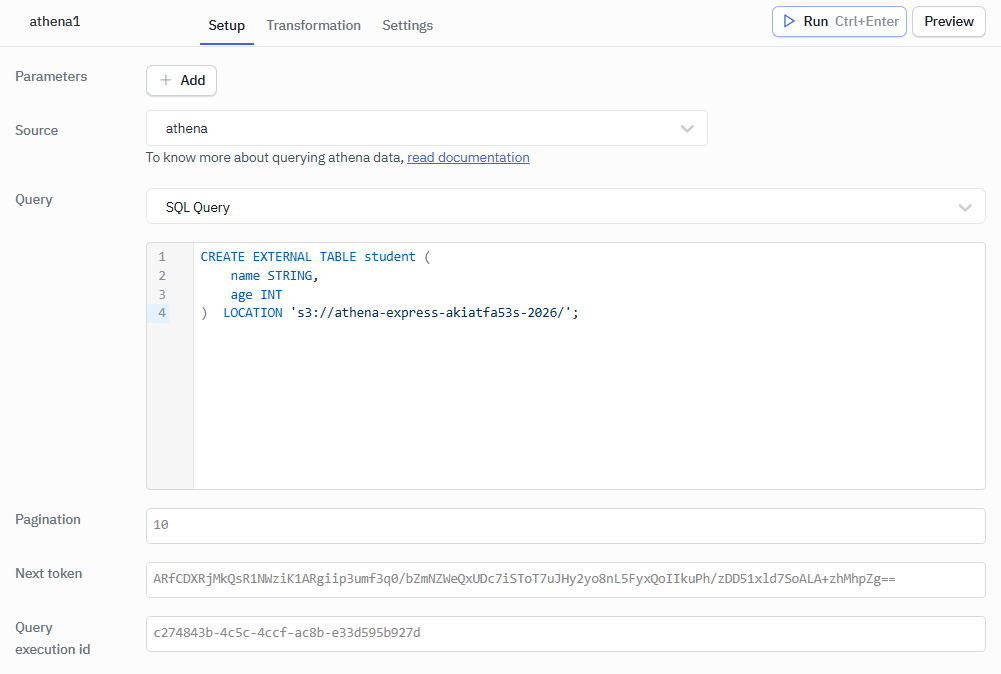

Athena connection

Inserting to Table​

This query is attempting to insert a new record into the student table in a database.

INSERT INTO student
VALUES ('Lansing',1)

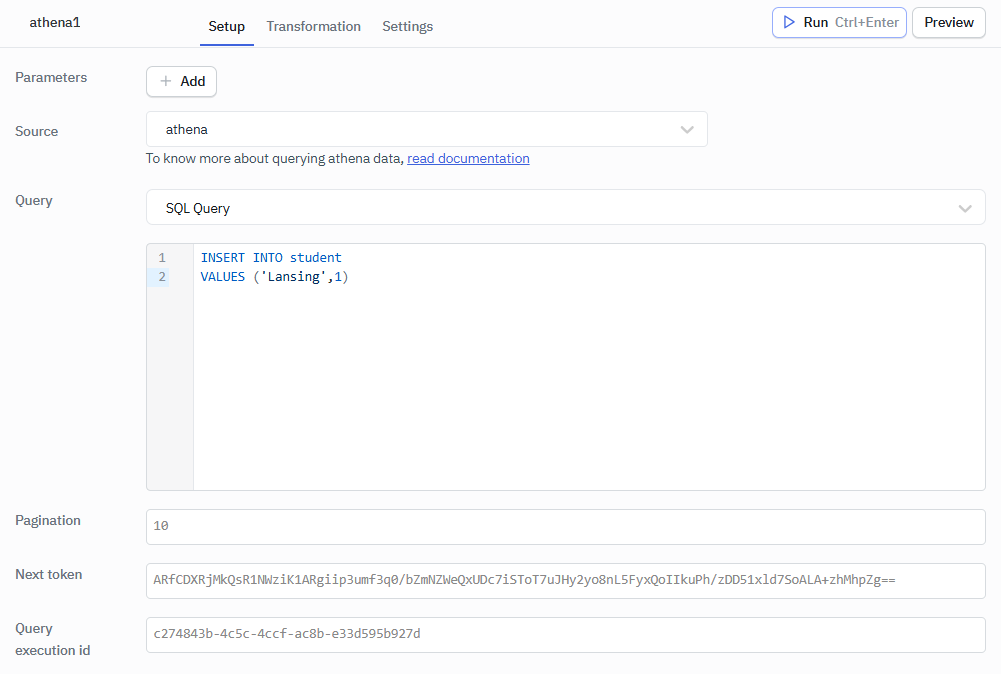

Athena connection

Select Operation​

This query retrieves all records from the student table where the age of the student is exactly 1 year.

SELECT * from student WHERE AGE=1

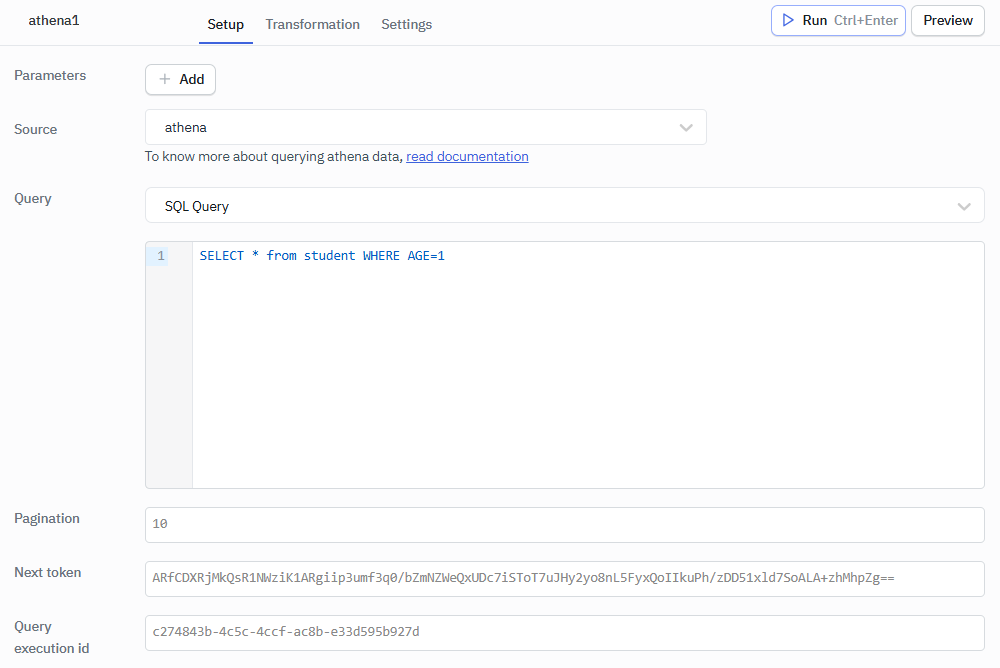

Athena connection

List Tables​

This query is used to display a list of all tables in the current database.

SHOW TABLES

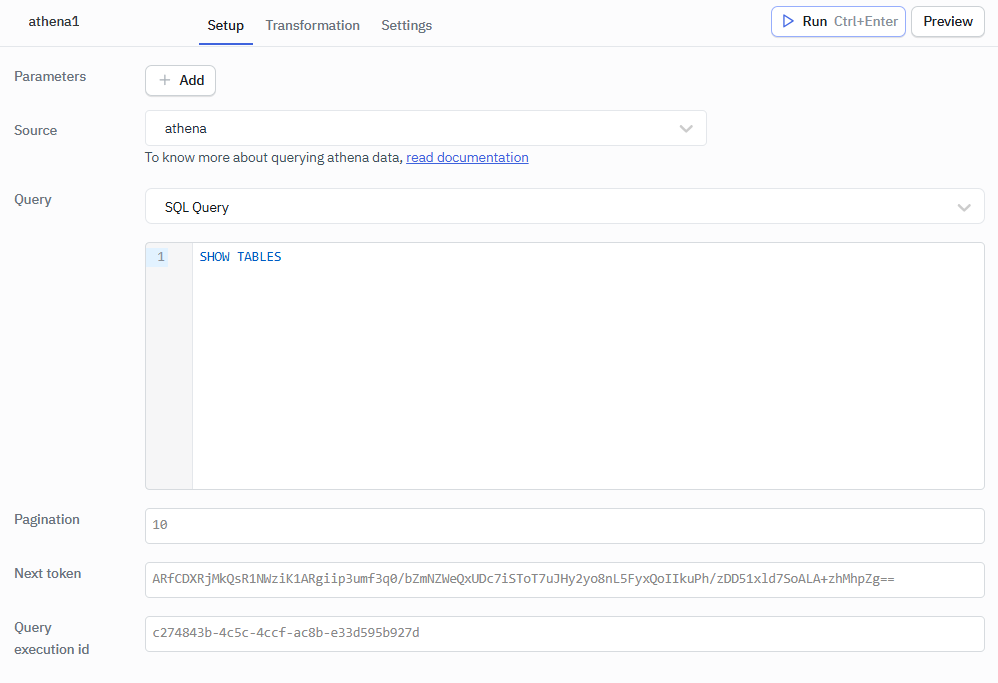

Athena connection
