MS SQL Server / Azure SQL Databases

ToolJet can connect to MS SQL Server & Azure SQL databases to read and write data.

Connection

To establish a connection with the MS SQL Server data source, click on the + Add new Data source button located on the query panel or navigate to the Data Sources page from the ToolJet dashboard.

info

Please make sure the Host/IP of the database is accessible from your VPC if you have self-hosted ToolJet. If you are using ToolJet cloud, please whitelist our IP.

ToolJet requires the following to connect to your PostgreSQL database.

• Host
• Port
• Username
• Password
• Connection Options
• Azure (Select this option if you are using Azure SQL databases)

Note: It is recommended to create a new database user so that you can control the access levels of ToolJet.

Connection Options

You can add optional configurations in key-value pairs for the MS SQL data source connection.

Example:

Key	Value
trustServerCertificate	true

These options allow you to fine-tune the connection, such as enabling encryption when using a self-signed certificate.

Authentication Type

ToolJet supports multiple authentication methods for the MSSQL data source through the Authentication type dropdown. Select the appropriate authentication method based on your SQL Server or Azure SQL setup.

SQL Server

Select SQL Server if you want to connect using the existing SQL authentication flow.

Provide the following credentials:

• Host
• Port
• Database name
• Username
• Password

This is the default authentication method and requires no additional configuration changes.

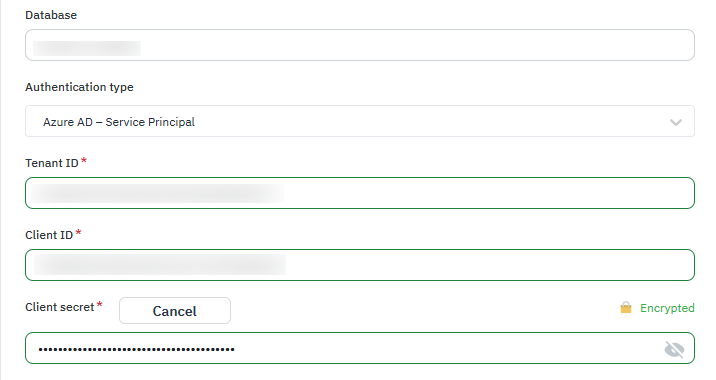

Azure AD – Service Principal

Select Azure AD – Service Principal to authenticate using an Azure application registered in Microsoft Entra ID. This option is recommended when connecting to Azure SQL Database using application-based authentication instead of SQL logins.

Azure AD's encryption takes precedence over the manual SSL configuration when using this auth type.

Provide the following details:

• Tenant ID – The Microsoft Entra tenant (directory) ID
• Client ID – The Application (client) ID from the Azure app registration
• Client Secret – The client secret value generated for the app

Enabling Encryption with a Self-Signed Certificate

To enhance security during data transfer, encryption can be enabled even with a self-signed certificate.

Server-Side Configuration

1. Create and Install a Self-Signed Certificate:
   • Generate a self-signed certificate and install it on the SQL Server instance.
2. Force Encryption:
   • Configure the SQL Server instance to force encrypted connections.
   • For Azure SQL databases, turn on the Encryption toggle in the Azure portal.

Client-Side Configuration

1. Set the connection option trustServerCertificate to true.
   • This bypasses certificate chain validation and is necessary when using a self-signed certificate.

SSH Tunnelling

ToolJet now supports SSH tunnelling for the MSSQL data source, allowing secure connections to databases hosted inside private networks. This can be used to:

• Access private databases
• Improve security
• Enable encrypted communication
• Avoid firewall rule changes

SSH Configuration

To securely connect to a private MSSQL database using SSH tunnelling:

1. Enable the SSH tunnel toggle in the MSSQL data source configuration.
2. Provide the following details:
   • SSH host – Server hostname or IP address.
   • SSH port – Port number (default: 22).
   • SSH username – Username for the SSH server.
   • Authentication method – Choose either:
     • Private key
     • Password

Once configured, ToolJet establishes a secure SSH connection. All MSSQL queries are routed through this encrypted tunnel.

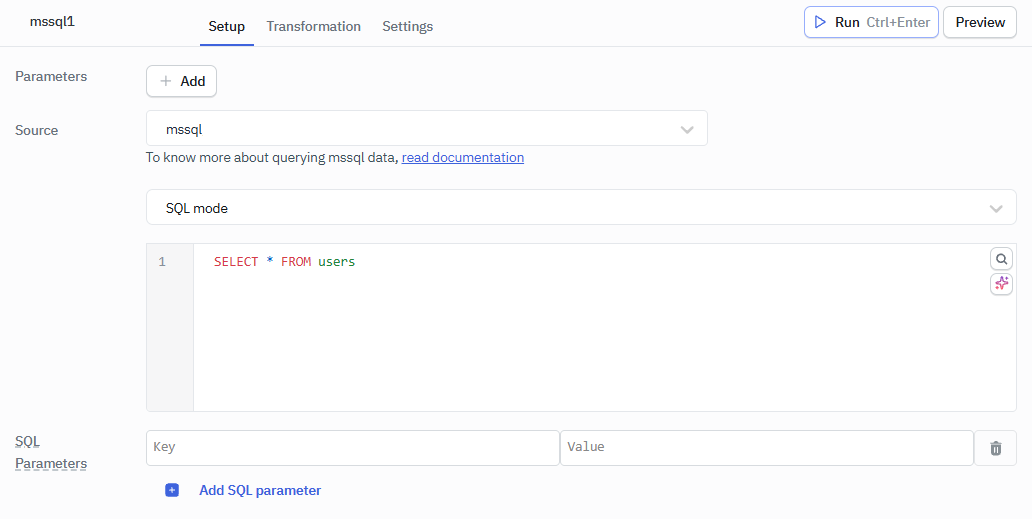

Querying in SQL Mode

SQL mode can be used to query MS SQL Server / Azure SQL Databases using SQL queries.

1. Create a new query and select the MS SQL data source.
2. Select SQL mode from the dropdown.
3. Enter the SQL query in the editor.
4. Click on the Run button to run the query.

Example

SELECT * FROM users

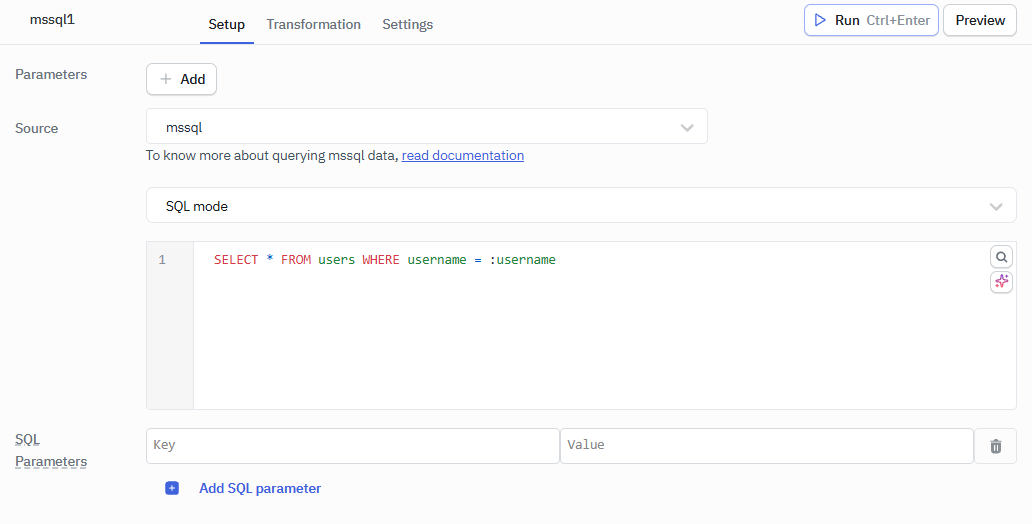

Parameterized Queries

ToolJet offers support for parameterized SQL queries, which enhance security by preventing SQL injection and allow for dynamic query construction. To implement parameterized queries:

1. Use :parameter_name as placeholders in your SQL query where you want to insert parameters.
2. In the Parameters section below the query editor, add key-value pairs for each parameter.
3. The keys should match the parameter names used in the query (without the colon).
4. The values can be static values or dynamic values using the {{ }} notation.

Example:

Query: SELECT * FROM users WHERE username = :username

SQL Parameters:

• Key: username
• Value: oliver // or {{ components.username.value }}

Row Level Security

In ToolJet, you can set up server-side row-level security to restrict access to specific rows based on custom groups or default user roles. Refer to the Setup Row Level Security guide for more information.

Query Timeout

You can set the timeout duration for SQL queries by adding the PLUGINS_SQL_DB_STATEMENT_TIMEOUT variable to the environment configuration file. By default, it is set to 120,000 ms.

MS SQL Server Dynamic Functions and System Variables

SQL Server provides dynamic functions that return information about the current connection, database, user, and server. These can help you write queries that automatically adapt to different environments without hardcoding values.

Function / Variable	Description	Example Output
DB_NAME()	Returns the name of the current database	tooljet_db
SUSER_SNAME()	Returns the login name of the current user	app_user
USER_NAME()	Returns the database user name of the current user	dbo
SYSTEM_USER	Returns the current system login (login name)	app_user
@@SERVERNAME	Returns the name of the SQL Server instance	MSSQLSERVER01
@@VERSION	Returns the SQL Server version and build info	Microsoft SQL Server 2019 (RTM)...
@@SPID	Returns the current session ID	55

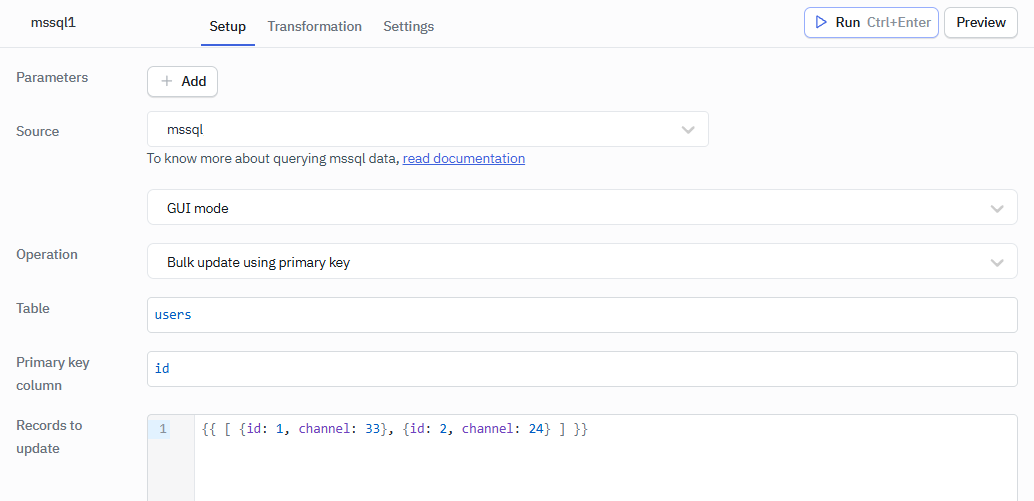

Querying in GUI Mode

GUI mode can be used to query MSSQL database without writing queries.

1. Create a new query and select the MSSQL data source.
2. Select GUI mode from the dropdown.
3. Choose the operation you want to perform.
4. Fetch and select the Table name.
5. Click on the Preview button to view the output or click on Run button to trigger the query.

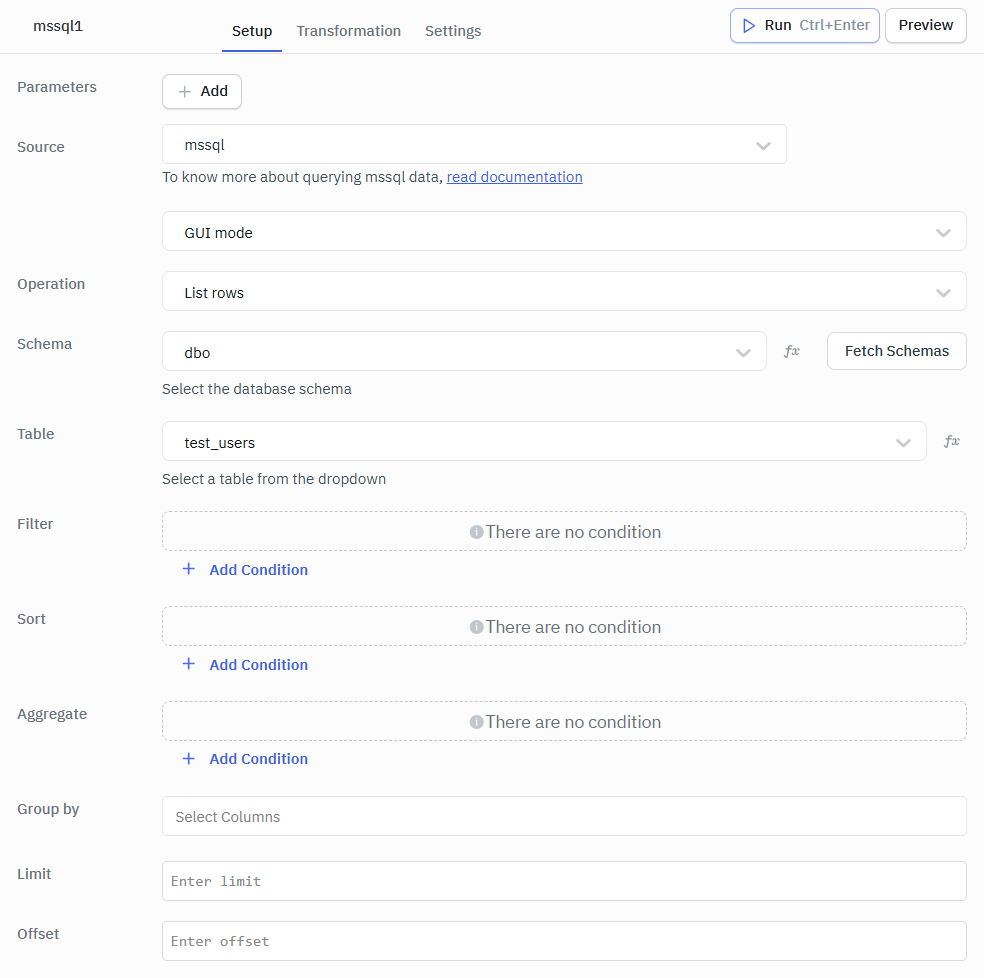

List Rows

Retrieve records from the selected table with optional filtering, sorting, and pagination options.

Required Parameters

• Schema: Select the required schema either by using the fx expression for dynamic values or by clicking the Fetch Schemas button to choose schema from the dropdown list.
• Table: Select the table from which rows need to be retrieved.

Optional Parameters

• Filter: Apply conditions to return only rows that match specific criteria.
• Sort: Arrange the returned rows in ascending or descending order based on selected columns.
• Aggregate: Apply aggregate functions such as count, sum, average, minimum, or maximum on selected columns.
• Group by: Group rows that share the same values in selected columns into summarized results.
• Limit: Restricts the number of rows returned in the result.
• Offset: Skips a specified number of rows before starting to return results.

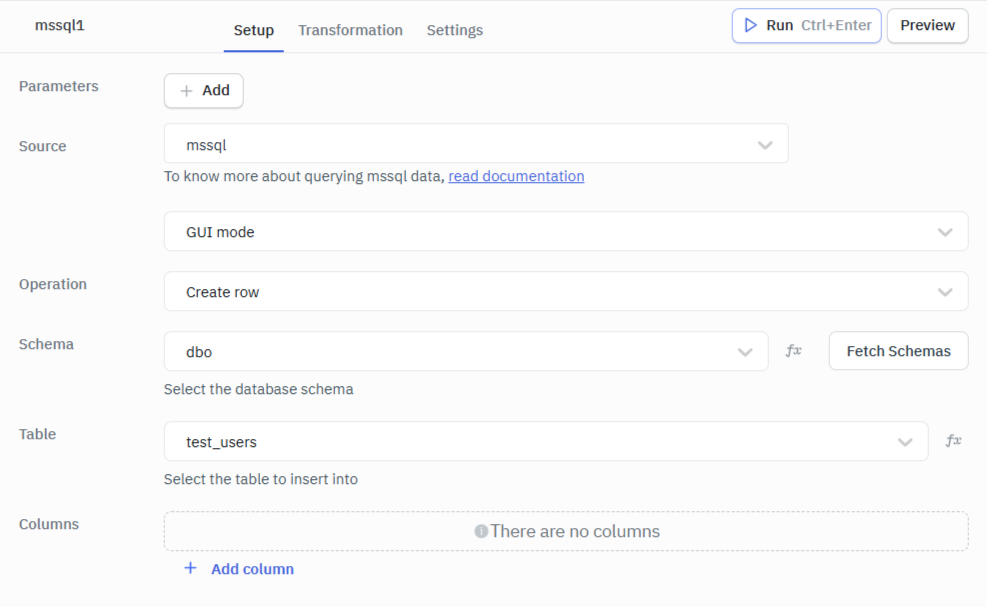

Create Row

Insert a new row into the selected table by providing values for the required columns.

In the editor, ensure the Columns input is provided in string format.

Required Parameter

• Columns: Specifies the table columns and their corresponding values to be inserted when creating a new row.

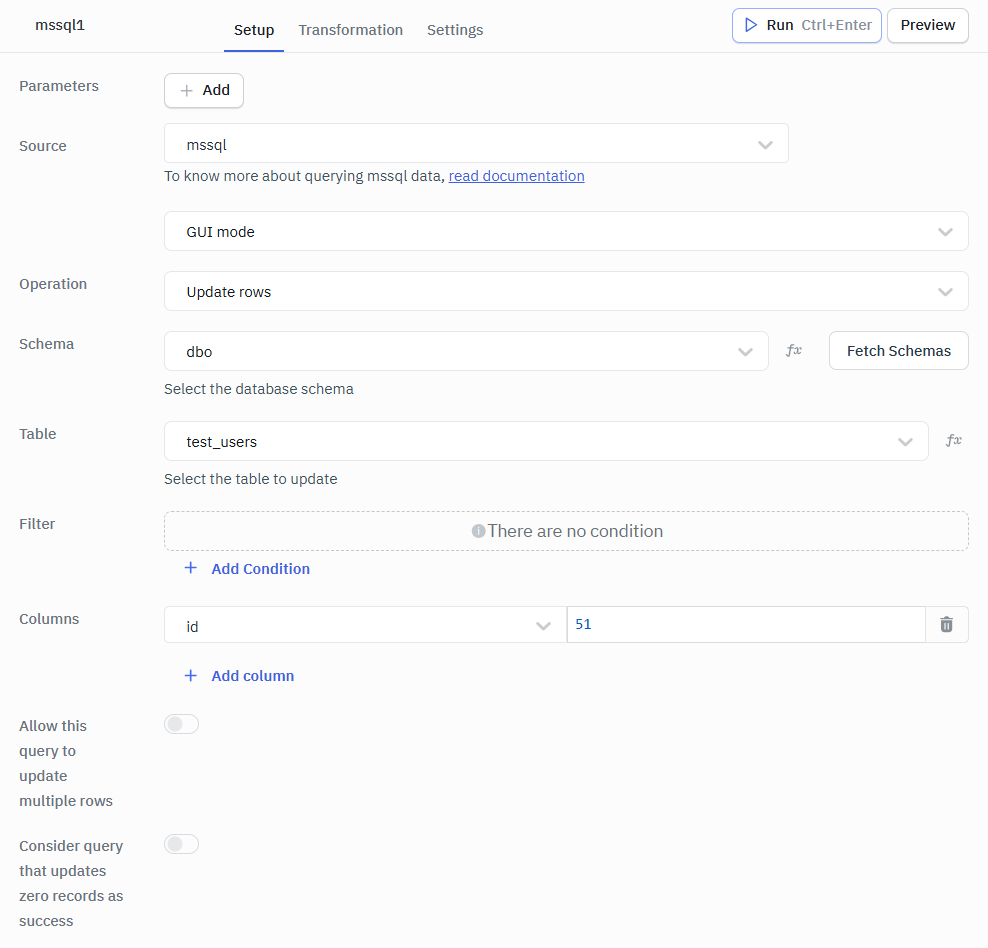

Update Rows

Modify existing row values in the selected table based on the specified conditions or identifiers.

In the editor, ensure the Columns input is provided in string format.

Required Parameter

• Columns: Specify the column names and values to be updated in the selected row(s).

Optional Parameter

• Filter: Apply conditions to identify which row(s) should be updated.

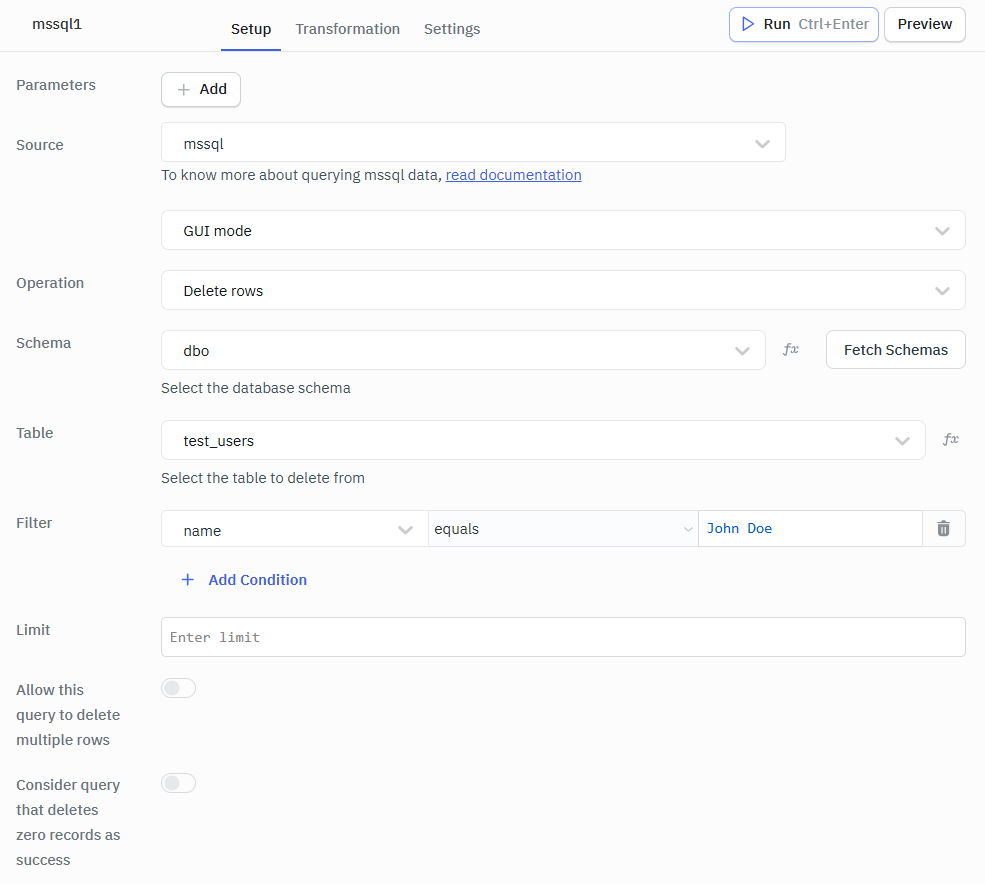

Delete Rows

Remove one or more rows from the selected table that match the given conditions.

Required Parameter

• Filter: Apply conditions to specify which row(s) should be deleted.

Optional Parameter

• Limit: Specify the maximum number of rows to delete.

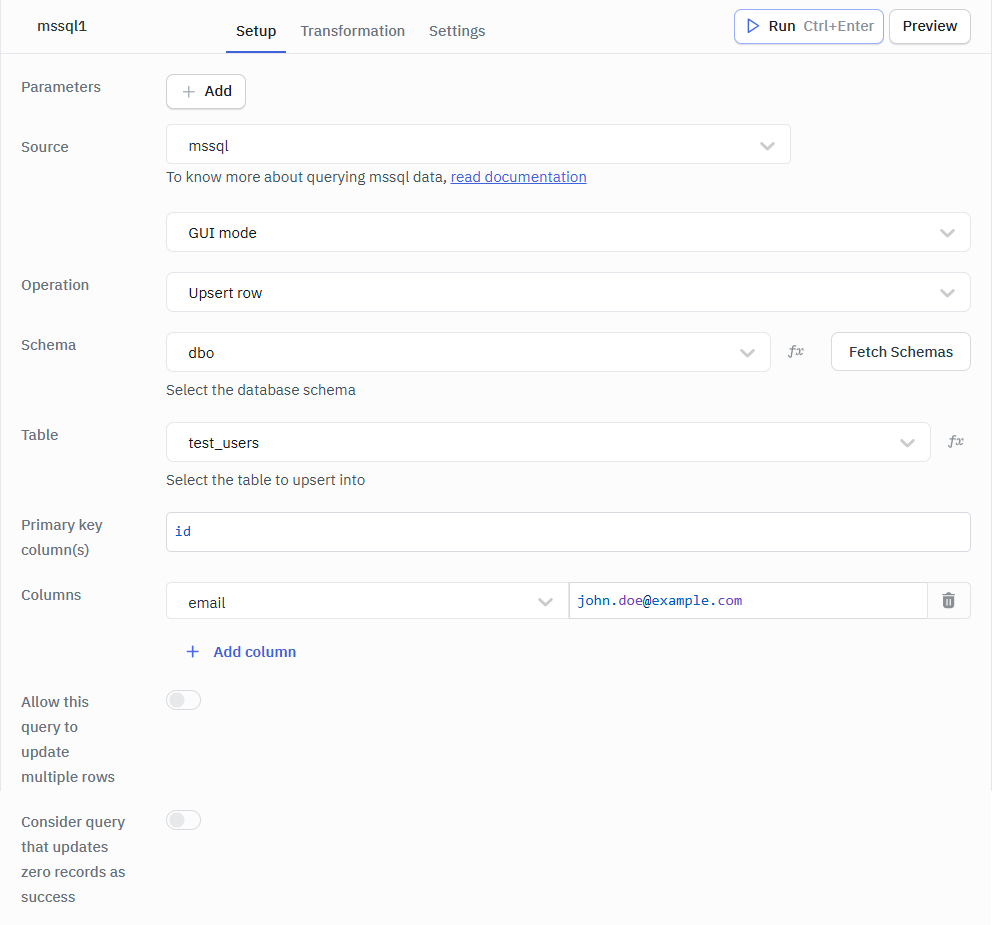

Upsert Row

Insert a new row or update an existing row if a matching primary or unique key already exists.

In the editor, ensure the Columns input is provided in string format.

Required Parameters

• Primary key column(s): Specifies the column(s) used to identify whether a row already exists for updating or if a new row should be inserted.
• Columns: Provide the column names and values to be inserted or updated.

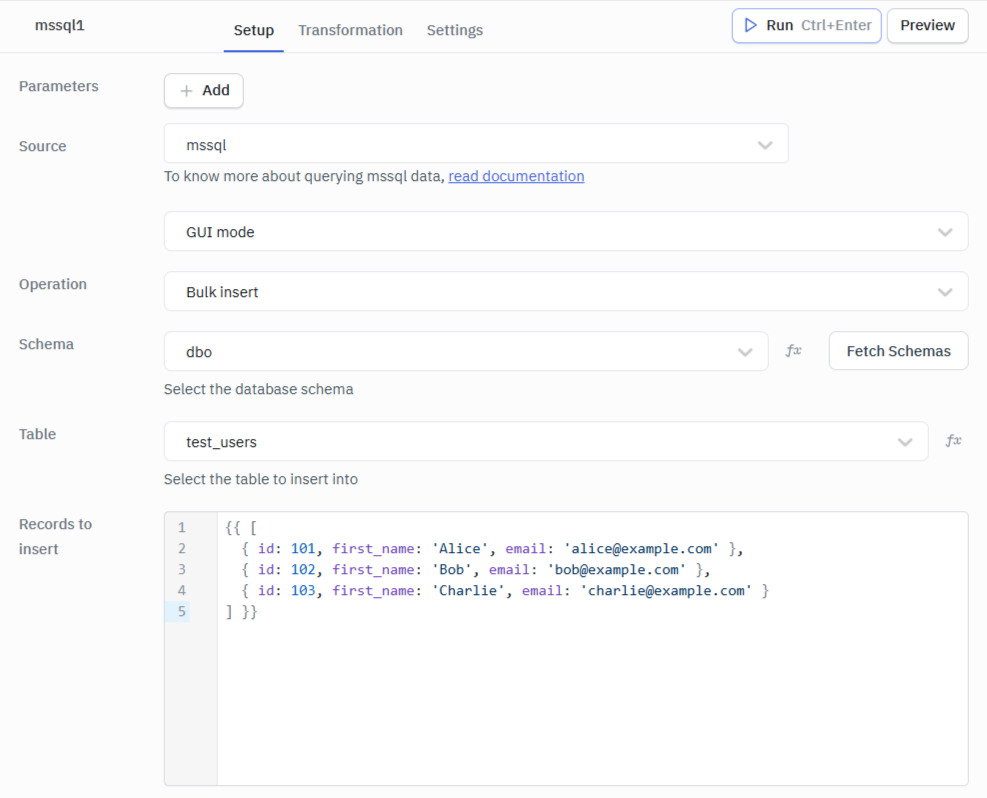

Bulk Insert

Inserts multiple rows into the table in a single operation using an array of records.

Required Parameters

• Table : Select the table into which multiple rows need to be inserted.
• Records to insert: Provide the set of rows and corresponding column values to be inserted in a single operation.

Example Values

{{ [
  { id: 101, first_name: 'Alice', email: '[email protected]' },
  { id: 102, first_name: 'Bob', email: '[email protected]' },
  { id: 103, first_name: 'Charlie', email: '[email protected]' }
] }}

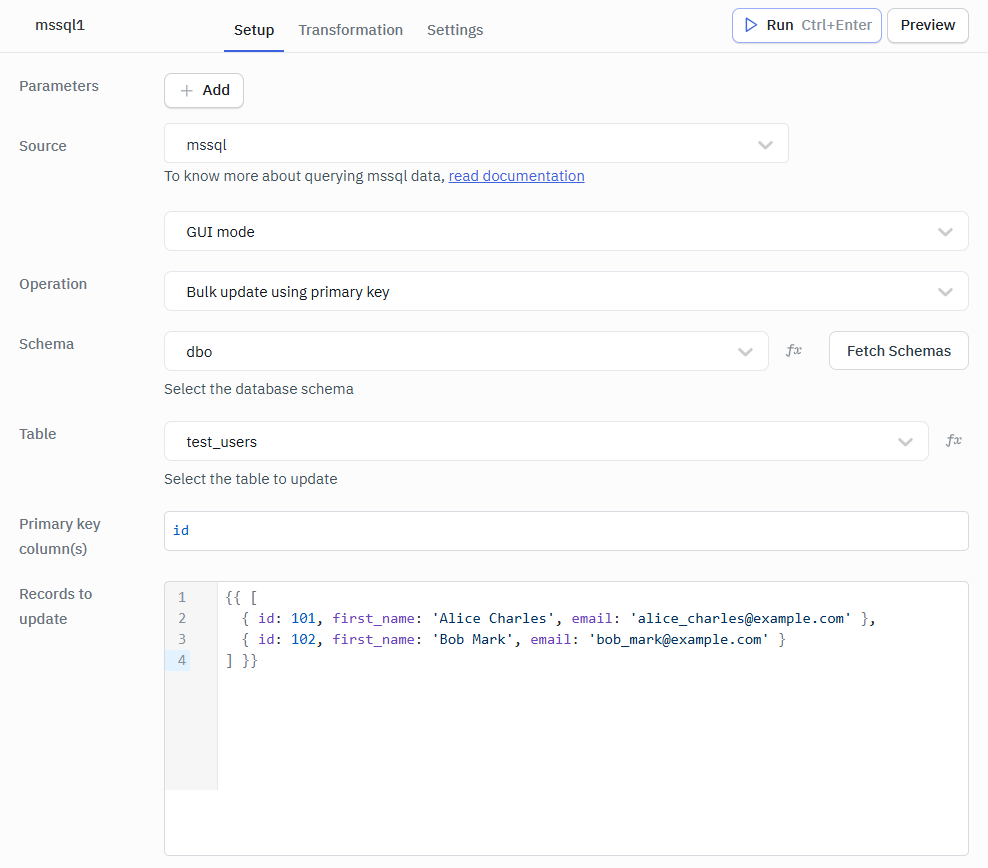

Bulk Update using Primary Key

Update multiple existing rows at once by matching records using their primary key values.

Required Parameters

• Primary key column(s): Specify the primary key column(s) used to identify the rows that need to be updated.
• Records to update: Provide multiple records with updated column values for the matching primary key rows.

Example Values

{{ [
  { id: 101, first_name: 'Alice Charles', email: '[email protected]' },
  { id: 102, first_name: 'Bob Mark', email: '[email protected]' }
] }}

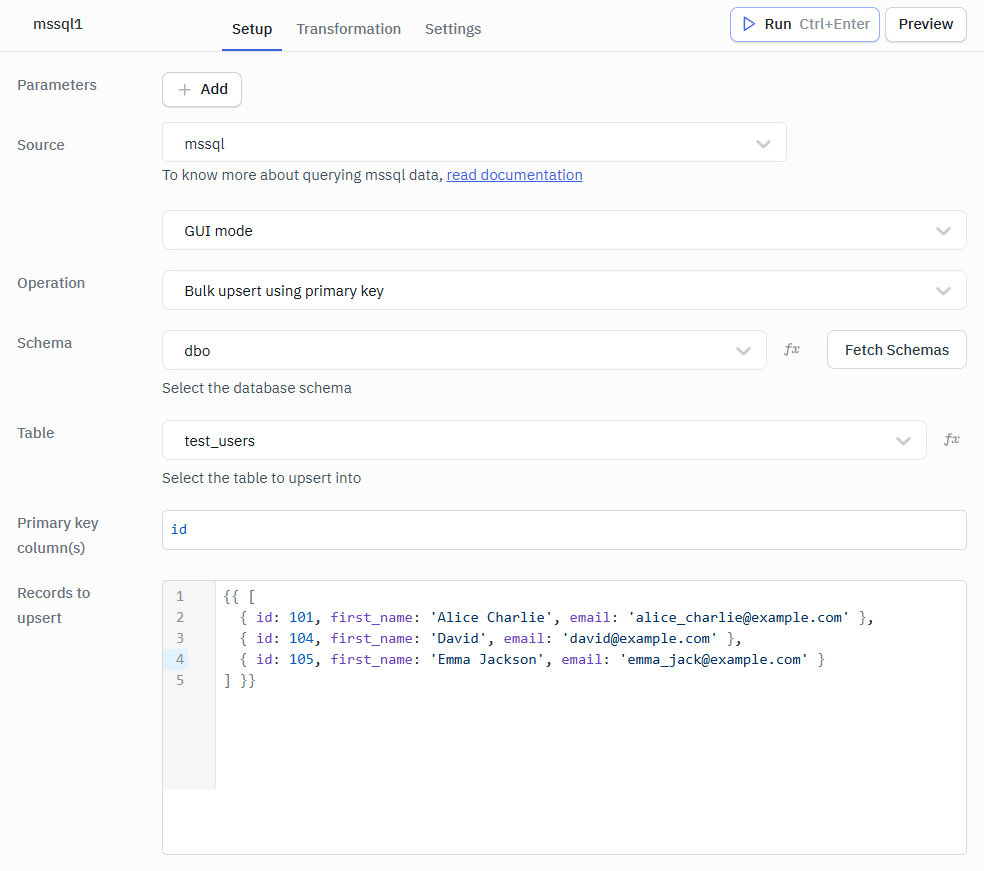

Bulk Upsert using Primary Key

Insert multiple new rows or update existing ones by matching rows using primary key values.

Required Parameters

• Primary key column(s): Specify the primary key column(s) used to determine whether each record should be updated or inserted.
• Records to upsert: Provide multiple records that will be inserted as new rows or updated if matching primary key values already exist.

In this operation, if a row with the matching primary key exists, it is updated; otherwise, a new row is inserted.

Example Values

{{ [
  { id: 101, first_name: 'Alice Charlie', email: '[email protected]' },
  { id: 104, first_name: 'David', email: '[email protected]' },
  { id: 105, first_name: 'Emma Jackson', email: '[email protected]' }
] }}

tip

Query results can be transformed using transformations. Read our transformations documentation to see how: link
