MySQL

ToolJet can connect to MySQL databases to read and write data.

Connection

To establish a connection with the MySQL data source, you can either click on the + Add new Data source button located on the query panel or navigate to the Data Sources page through the ToolJet dashboard. ToolJet supports both Static and Dynamic MySQL connections. Along with configuring fixed connection details at the datasource level, you can also define certain connection parameters dynamically from the query builder at runtime.

Static Connection

Dynamic Connection

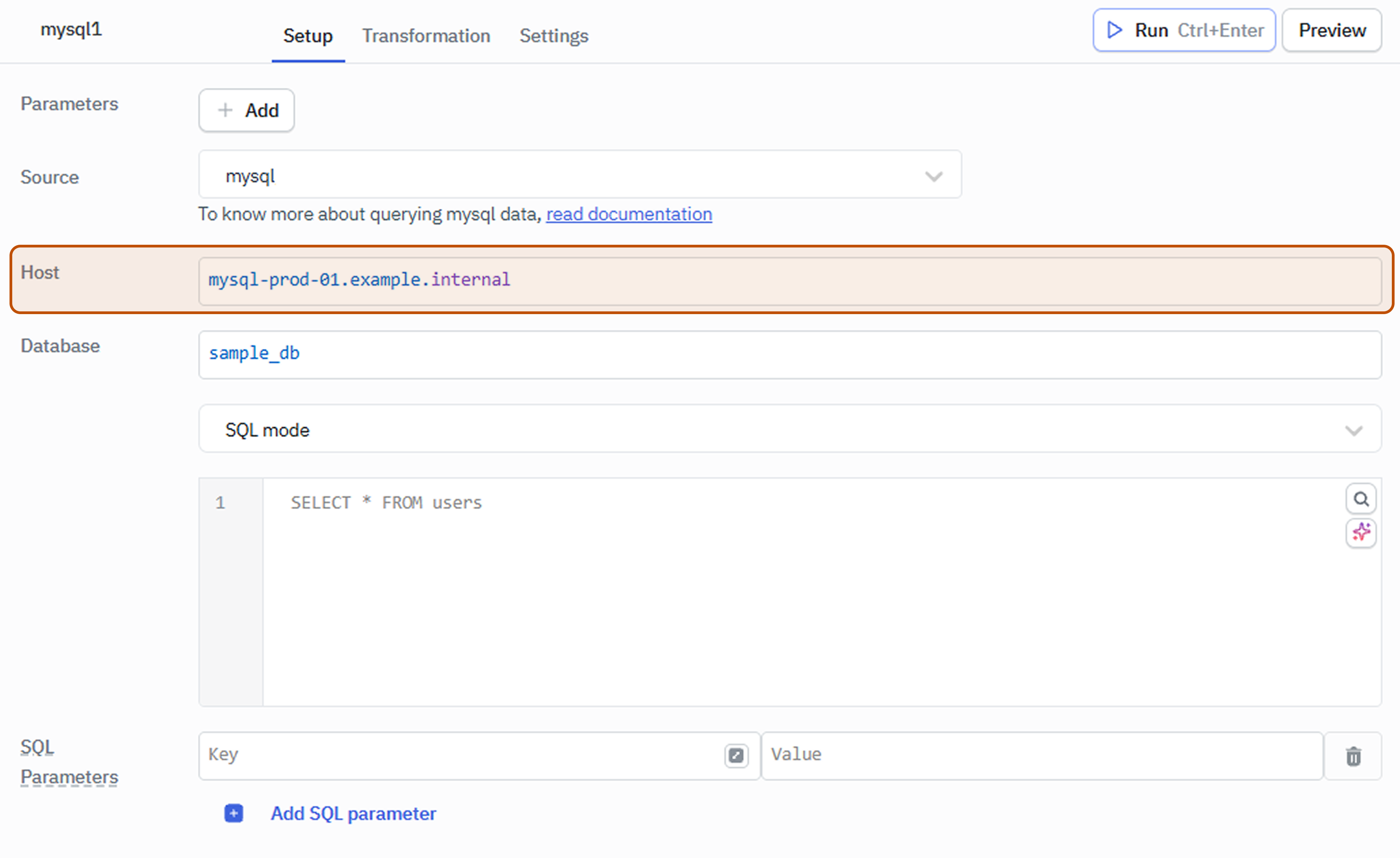

Dynamic connection allows specific MySQL connection parameters to be provided at runtime from the query builder, enabling flexible and dynamic database access.

info

Please make sure the Host/IP of the database is accessible from your VPC if you have self-hosted ToolJet. If you are using ToolJet cloud, please whitelist our IP.

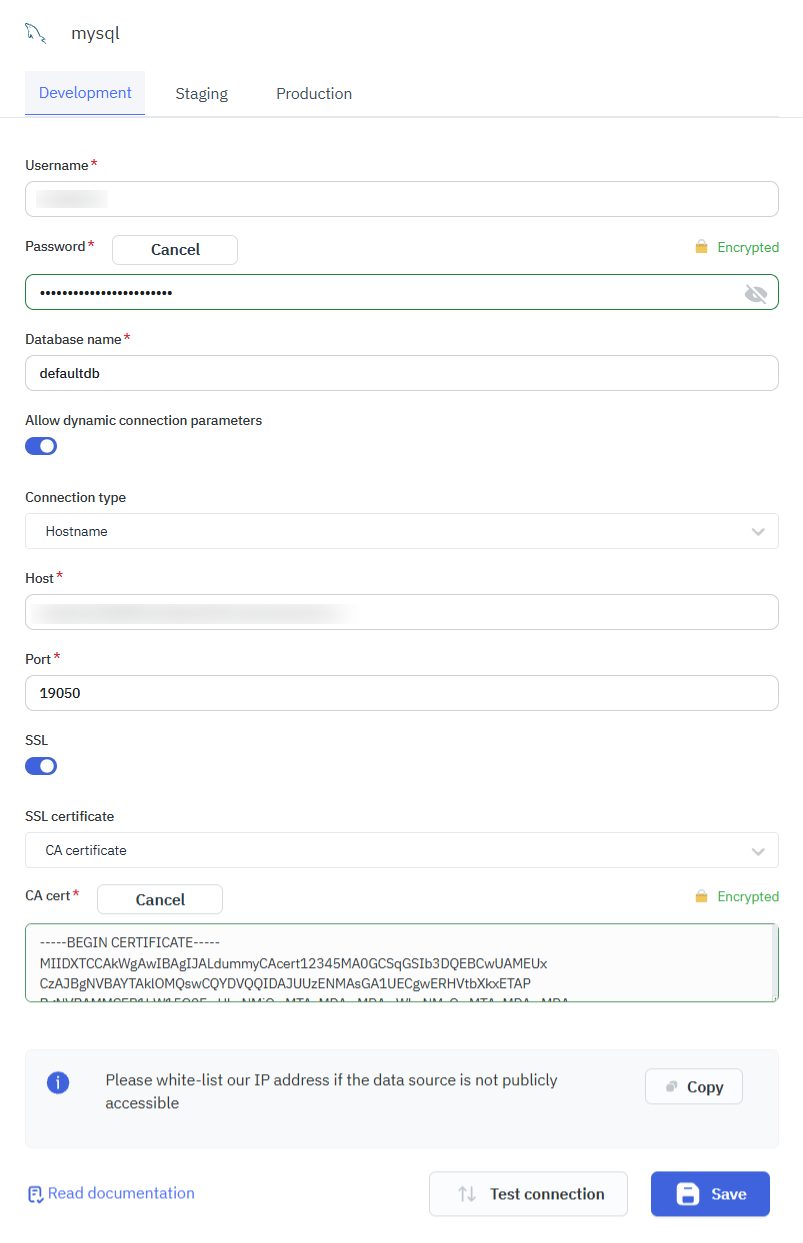

ToolJet requires the following to connect to your MySQL database:

• Username
• Password
• Database Name
• Connection Type

If you are using Hostname as the connection type, you will need to provide the following information:

• Host/IP
• Port
• SSL
• SSL Certificate:
  • CA Certificate
  • Self-signed Certificate
  • None

If you are using Socket as the connection type, you will need to provide the following information:

• Socket Path

Note: It is recommended to create a new MySQL database user so that you can control the access levels of ToolJet.

SSH Tunnelling

ToolJet now supports SSH tunnelling for the MySQL data source, allowing secure connections to databases hosted inside private networks.This can be used to:

• Access private databases
• Improve security
• Enable encrypted communication
• Avoid firewall rule changes

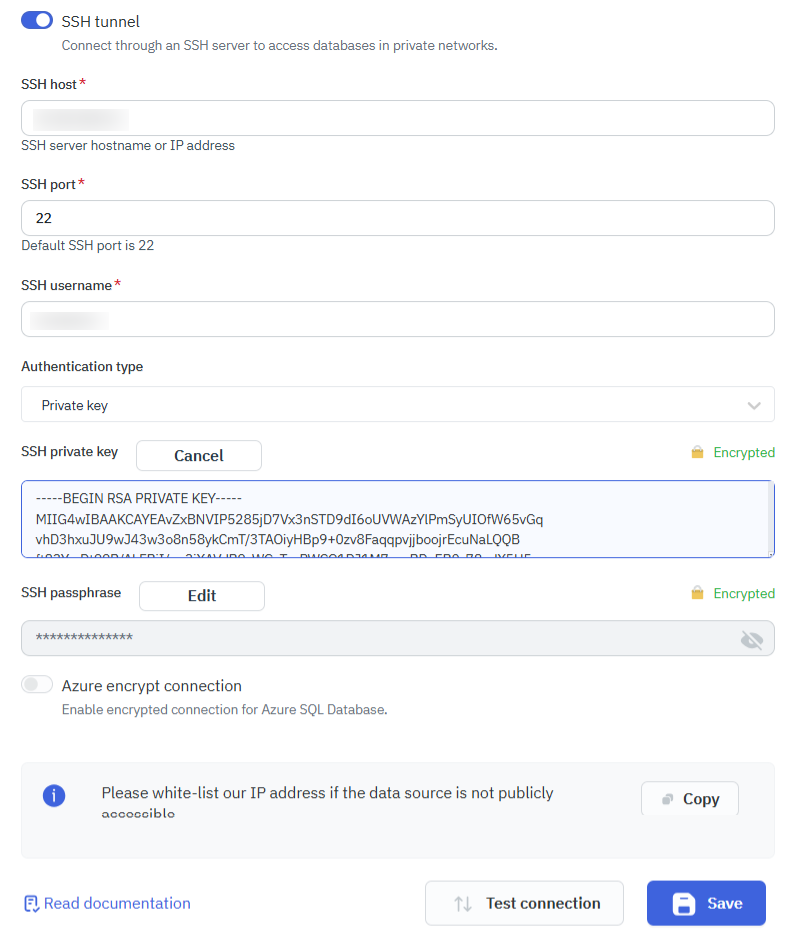

SSH Configuration

To securely connect to a private MySQL database using SSH tunnelling:

1. Enable the SSH tunnel toggle in the MySQL data source configuration.
2. Provide the following details:
   • SSH host – Server hostname or IP address.
   • SSH port – Port number (default: 22).
   • SSH username – Username for the SSH server.
   • Authentication method – Choose either:
     • Private key
     • Password

Once configured, ToolJet establishes a secure SSH connection. All MSSQL queries are routed through this encrypted tunnel.

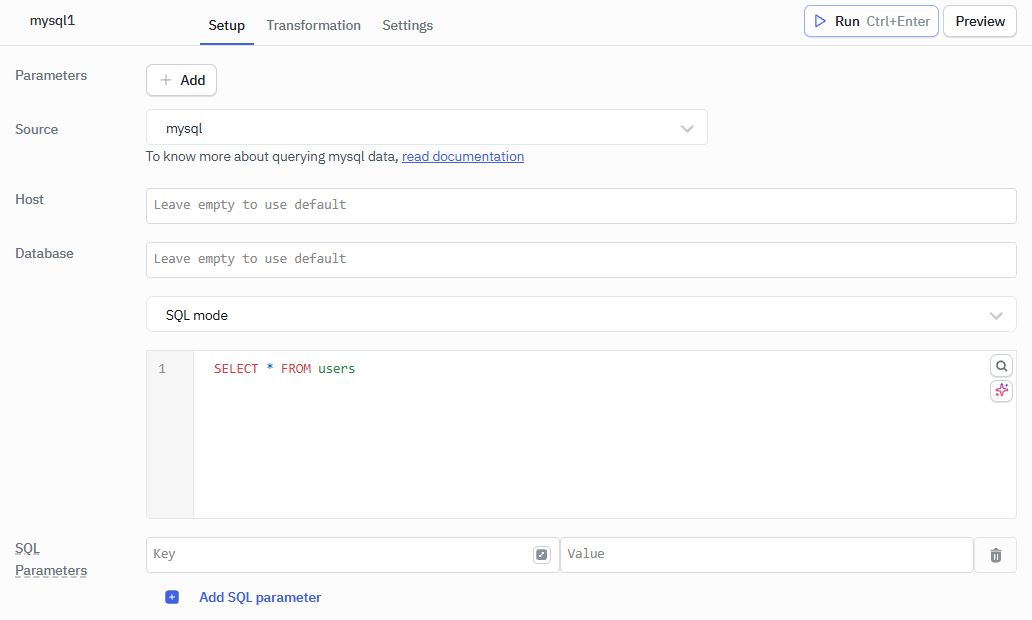

Querying in SQL Mode

SQL mode can be used to query MySQL database using SQL queries.

1. Create a new query and select the MySQL data source.
2. Select SQL mode from the dropdown.
3. Enter the SQL query in the editor.
4. Click on the Run button to run the query.

Example:

SELECT * FROM users

Parameterized Queries

ToolJet offers support for parameterized SQL queries, which enhance security by preventing SQL injection and allow for dynamic query construction. To implement parameterized queries:

1. Use :parameter_name as placeholders in your SQL query where you want to insert parameters.
2. In the Parameters section below the query editor, add key-value pairs for each parameter.
3. The keys should match the parameter names used in the query (without the colon).
4. The values can be static values or dynamic values using the {{ }} notation.

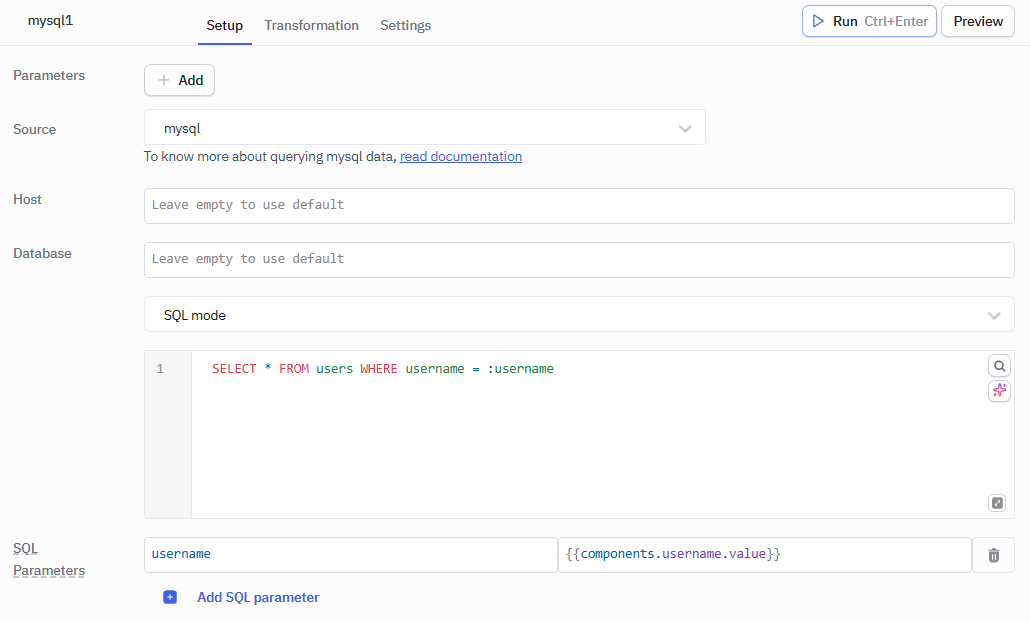

Example:

Query: SELECT * FROM users WHERE username = :username

SQL Parameters:

• Key: username
• Value: oliver or {{ components.username.value }}

Row Level Security

In ToolJet, you can set up server-side row-level security to restrict access to specific rows based on custom groups or default user roles. Refer to the Setup Row Level Security guide for more information.

Query Timeout

You can set the timeout duration for SQL queries by adding the PLUGINS_SQL_DB_STATEMENT_TIMEOUT variable to the environment configuration file. By default, it is set to 120,000 ms.

MySQL Dynamic Functions and System Variables

MySQL offers dynamic functions and system variables that provide real-time information about the current database, user session, connection, and server environment. These can help you write queries that automatically adapt to different environments without hardcoding values.

Function / Variable	Description	Example Output
DATABASE()	Returns the name of the current database in use	tooljet_db
USER()	Returns the current MySQL user account (user@host)	app_user@localhost
CURRENT_USER()	Returns the authenticated user account (can differ from USER())	app_user@%
VERSION()	Returns the MySQL server version	8.0.33
@@hostname	Returns the MySQL server hostname	db-server-01
@@port	Returns the MySQL server port number	3306
CONNECTION_ID()	Returns the connection ID for the current session	123456

Querying in GUI Mode

GUI mode can be used to query MySQL database without writing queries.

1. Create a new query and select the MySQL data source.
2. Select GUI mode from the dropdown.
3. Choose the operation you want to perform.
4. Fetch and select the Table name.
5. Click on the Preview button to view the output or click on Run button to trigger the query.

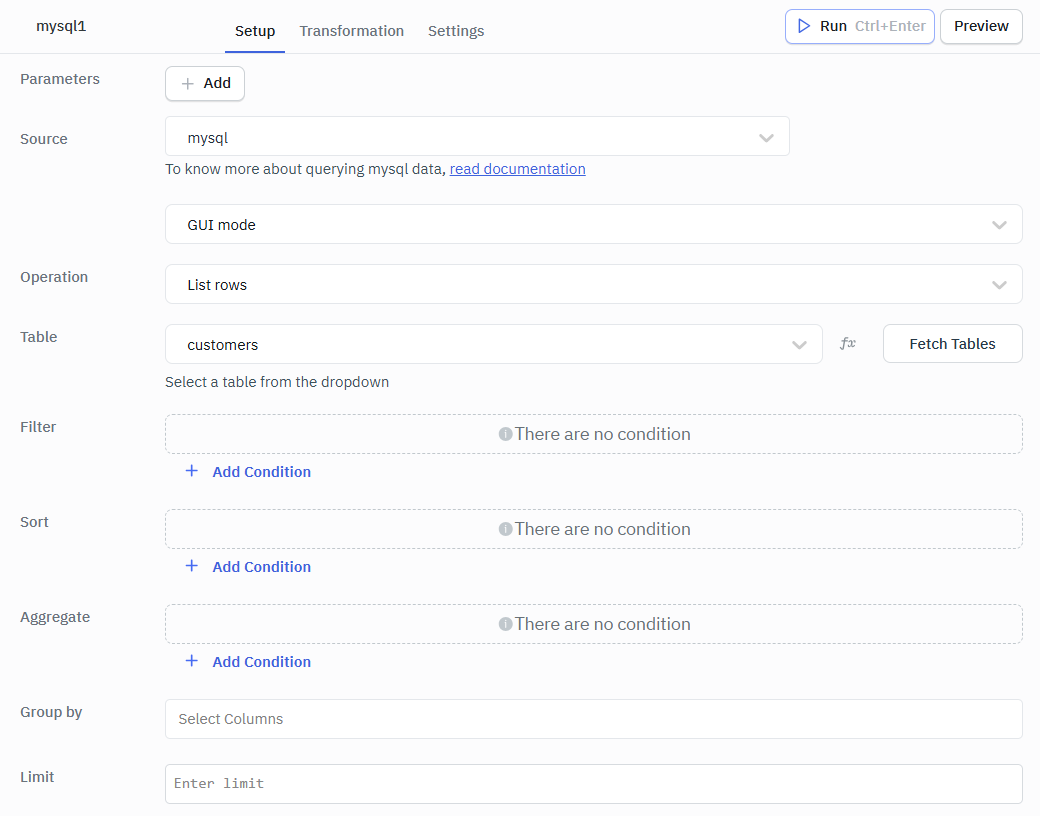

List Rows

Retrieve records from the selected table with optional filtering, sorting, and pagination options.

Required Parameter

• Table: Select the table from which rows need to be retrieved.

Optional Parameters

• Filter: Apply conditions to return only rows that match specific criteria.
• Sort: Arrange the returned rows in ascending or descending order based on selected columns.
• Aggregate: Apply aggregate functions such as count, sum, average, minimum, or maximum on selected columns.
• Group by: Group rows that share the same values in selected columns into summarized results.
• Limit: Restricts the number of rows returned in the result.
• Offset: Skips a specified number of rows before starting to return results.

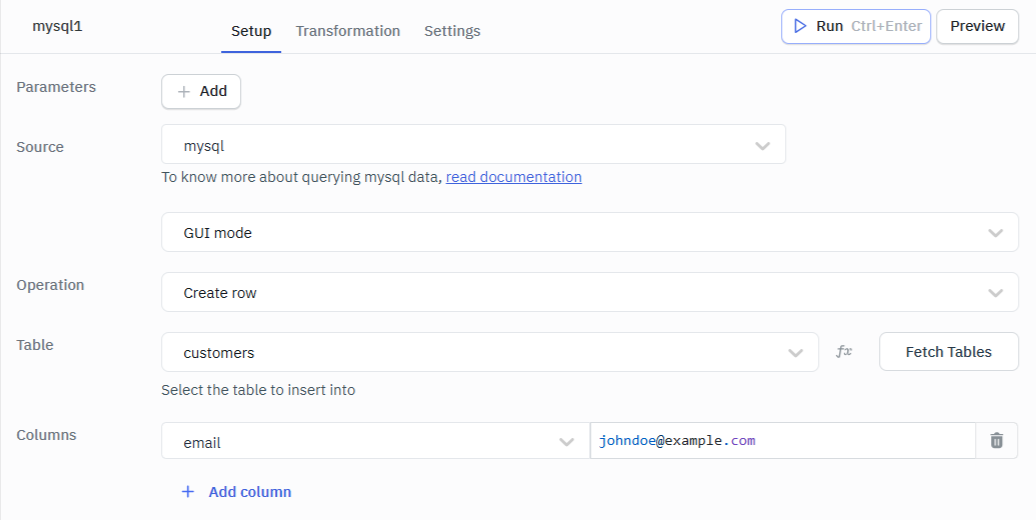

Create Rows

Insert a new row into the selected table by providing values for the required columns.

In the editor, ensure the Columns input is provided in string format.

Required Parameters

• Columns: Specifies the table columns and their corresponding values to be inserted when creating a new row.

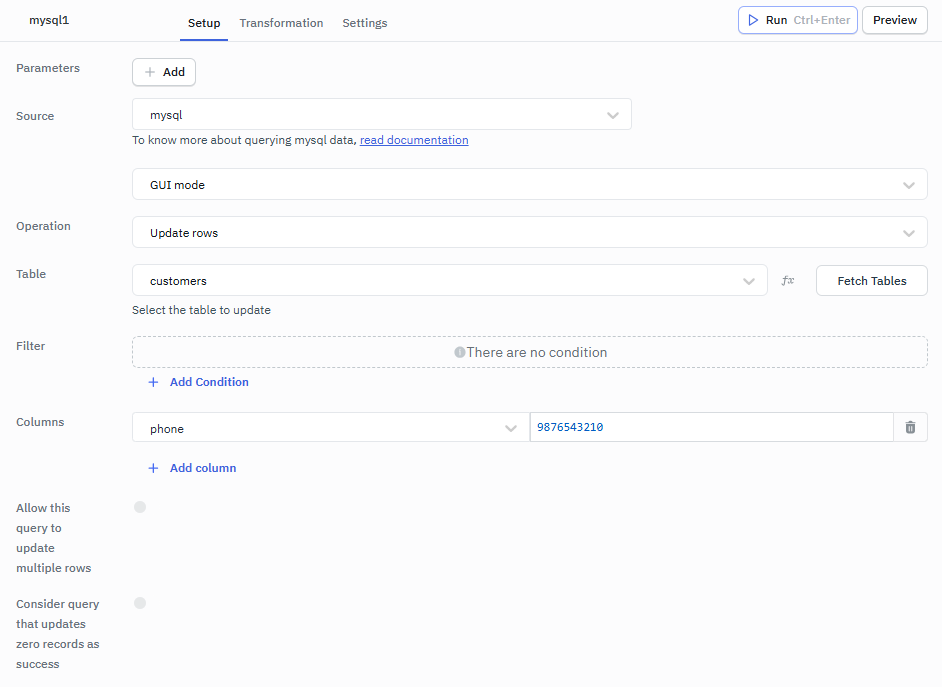

Update Rows

Modify existing row values in the selected table based on the specified conditions or identifiers.

In the editor, ensure the Columns input is provided in string format.

Required Parameters

• Columns: Specify the column names and values to be updated in the selected row(s).

Optional Parameters

• Filter: Apply conditions to identify which row(s) should be updated.

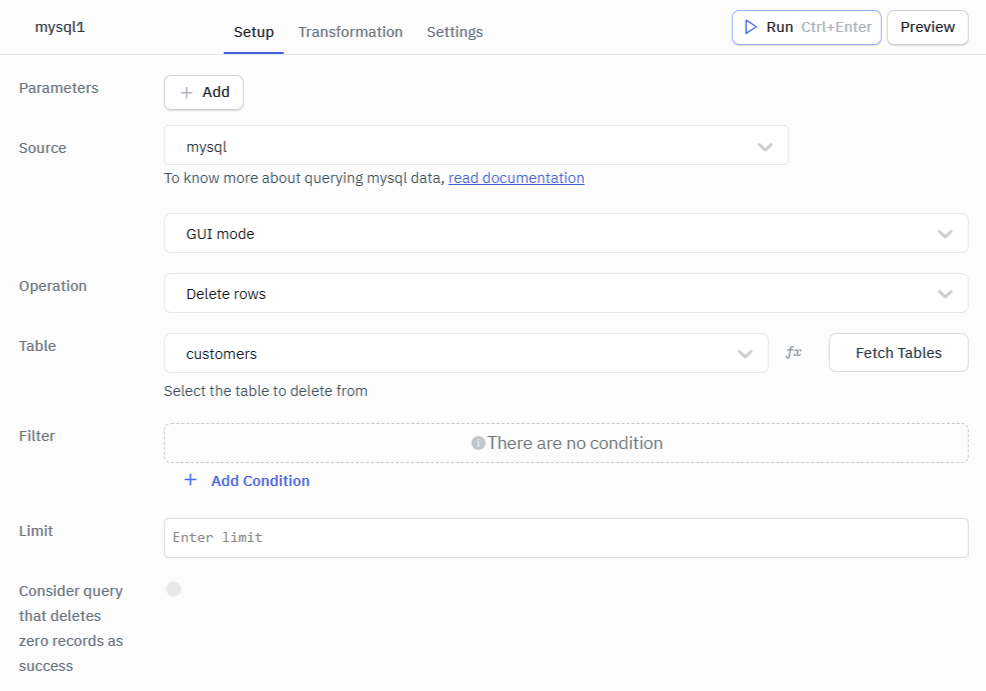

Delete Rows

Remove one or more rows from the selected table that match the given conditions.

Optional Parameters

• Filter: Apply conditions to specify which row(s) should be deleted.
• Limit: Specify the maximum number of rows to delete.

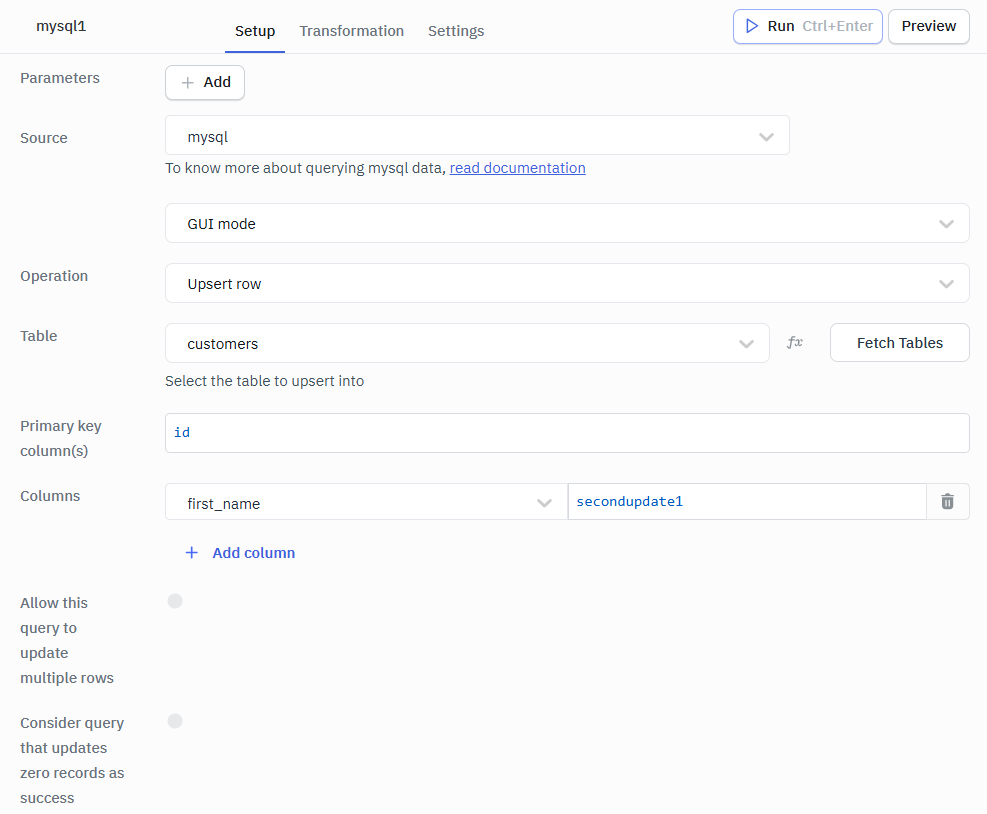

Upsert Rows

Insert a new row or update an existing row if a matching primary or unique key already exists.

In the editor, ensure the Columns input is provided in string format.

Required Parameters

• Primary key column(s): Specifies the column(s) used to identify whether a row already exists for updating or if a new row should be inserted.
• Columns: Provide the column names and values to be inserted or updated.

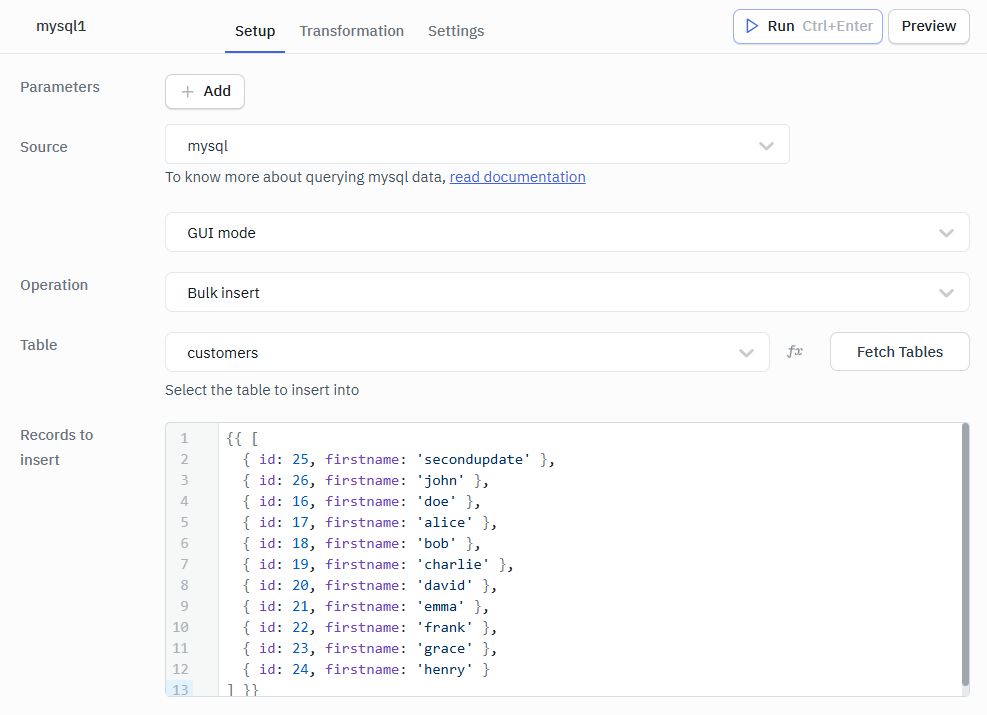

Bulk Insert

Inserts multiple rows into the table in a single operation using an array of records.

Required Parameters

• Table : Select the table into which multiple rows need to be inserted.
• Records to insert: Provide the set of rows and corresponding column values to be inserted in a single operation.

Example Values

{{ [
  { id: 25, firstname: 'secondupdate' },
  { id: 26, firstname: 'john' },
  { id: 16, firstname: 'doe' },
  { id: 17, firstname: 'alice' },
  { id: 18, firstname: 'bob' },
  { id: 19, firstname: 'charlie' },
  { id: 20, firstname: 'david' },
  { id: 21, firstname: 'emma' },
  { id: 22, firstname: 'frank' },
  { id: 23, firstname: 'grace' },
  { id: 24, firstname: 'henry' }
] }}

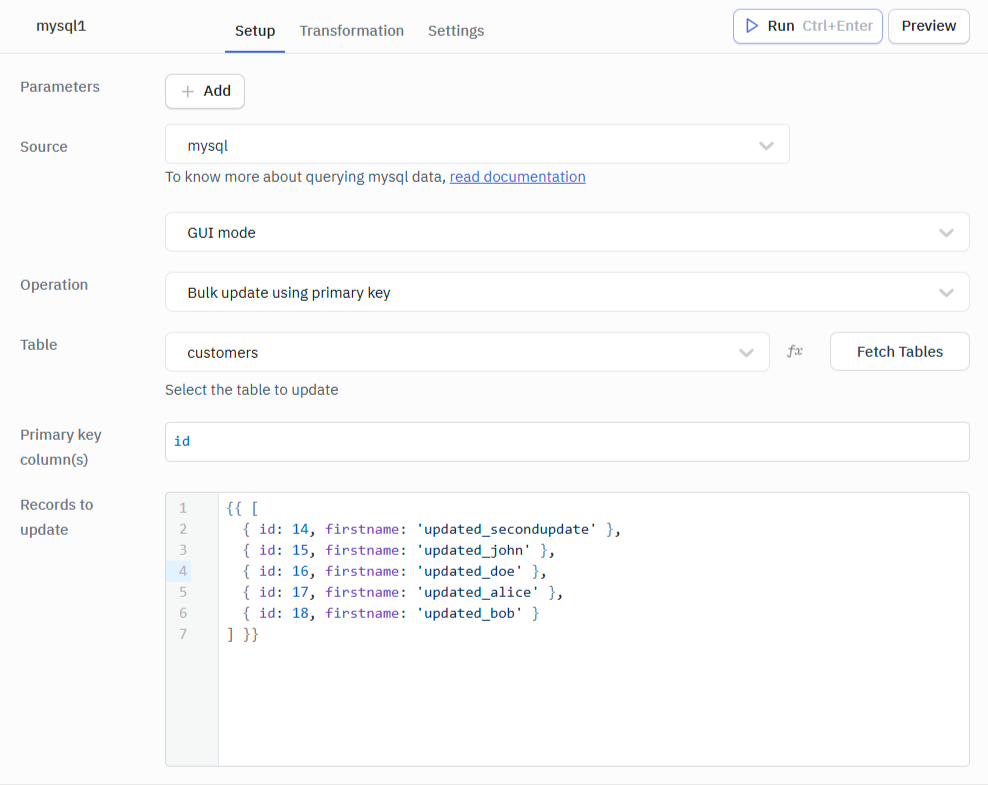

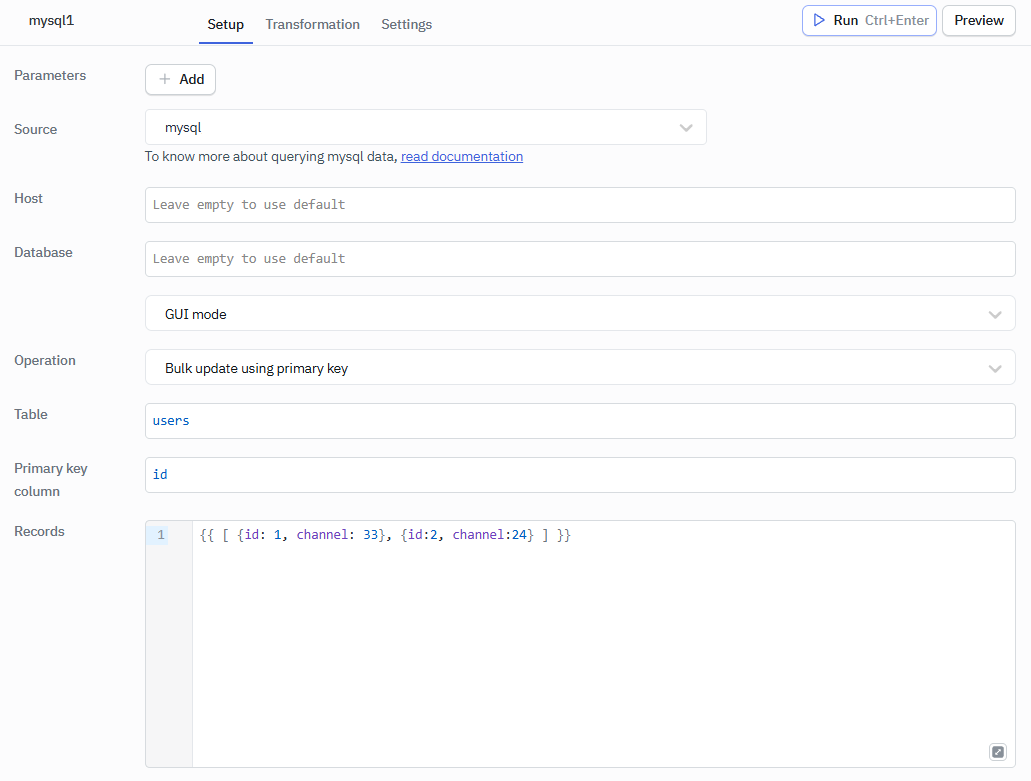

Bulk Update using Primary Key

Update multiple existing rows at once by matching records using their primary key values.

Required Parameters

• Primary key column(s): Specify the primary key column(s) used to identify the rows that need to be updated.
• Records to update: Provide multiple records with updated column values for the matching primary key rows.

Example Values

{{ [
  { id: 14, firstname: 'updated_secondupdate' },
  { id: 15, firstname: 'updated_john' },
  { id: 16, firstname: 'updated_doe' },
  { id: 17, firstname: 'updated_alice' },
  { id: 18, firstname: 'updated_bob' }
] }}

Bulk Upsert using Primary Key

Insert multiple new rows or update existing ones by matching rows using primary key values.

Required Parameters

• Primary key column(s): Specify the primary key column(s) used to determine whether each record should be updated or inserted.
• Records to upsert: Provide multiple records that will be inserted as new rows or updated if matching primary key values already exist.

In this operation, if a row with the matching primary key exists, it is updated; otherwise, a new row is inserted.

tip

Query results can be transformed using transformations. Learn more about transformations here.
