Conditional Formatting

Conditional formatting lets you dynamically change the text color, background color and disable action button of Table columns based on cell values or row data. You can use it to highlight important data, flag anomalies, or visually categorize records, all without writing a separate query or adding extra components.

How It Works

Each column in the Table component has Text Color and Cell Color style properties. By default, these accept a static color value. Clicking the fx icon next to these properties lets you write JavaScript expressions inside {{ }} that evaluate per row at render time.

Two identifiers are available inside these expressions:

Identifier	Description
cellValue	The value of the current cell in that row. Use this when the formatting condition depends on the column's own data.
rowData	An object containing all column values for the current row. Use this when the formatting condition depends on data from other columns.

info

To learn more about writing dynamic expressions, see Using fx for Dynamic Behaviour.

Configuring Conditional Formatting

1. Click the Table component to open the properties panel.
2. Go to the Columns section and select the column you want to format.
3. Scroll down to the Styles section of the column.
4. Click the fx icon next to Text Color or Cell Color.
5. Enter a JavaScript expression using cellValue or rowData.

The expression must return a valid CSS color value — a color name (e.g., red), hex code (e.g., #D9534F), or any other CSS-supported color format.

Supported Column Types

Not all column types support both formatting options. The table below summarizes support across column types.

Column Type	Text Color	Cell Background Color
String	Yes	Yes
Number	Yes	Yes
Text	Yes	Yes
Date Picker	Yes	Yes
Boolean	Yes	Yes

Column Type	Text Color	Cell Background Color
Select	Yes	No
Multiselect	Yes	No
Link	Yes	No
Image	Yes	No
Toggle	Yes	No

Examples

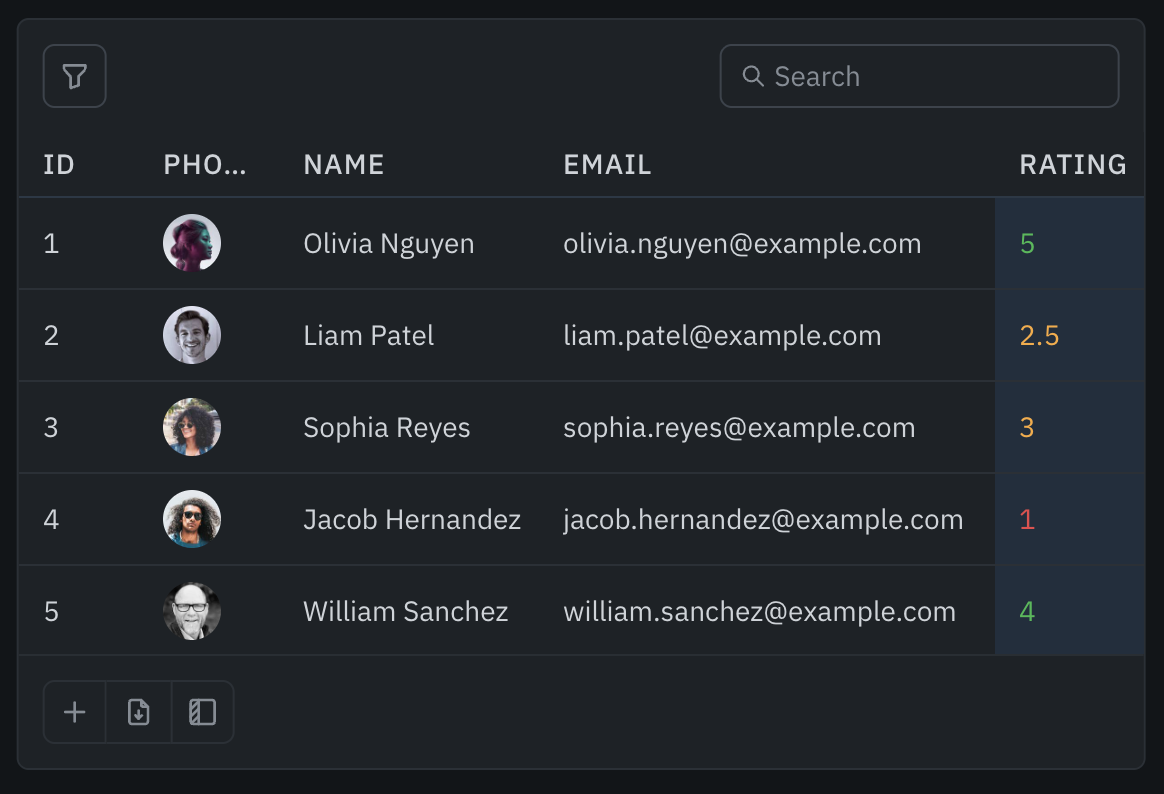

Text Color Based on Cell Value

Format a Rating column so that low ratings appear in red, mid-range in orange, and high ratings in green:

{{cellValue >= 4 ? '#5CB85C' : cellValue >= 2.5 ? '#F0AD4E' : '#D9534F'}}

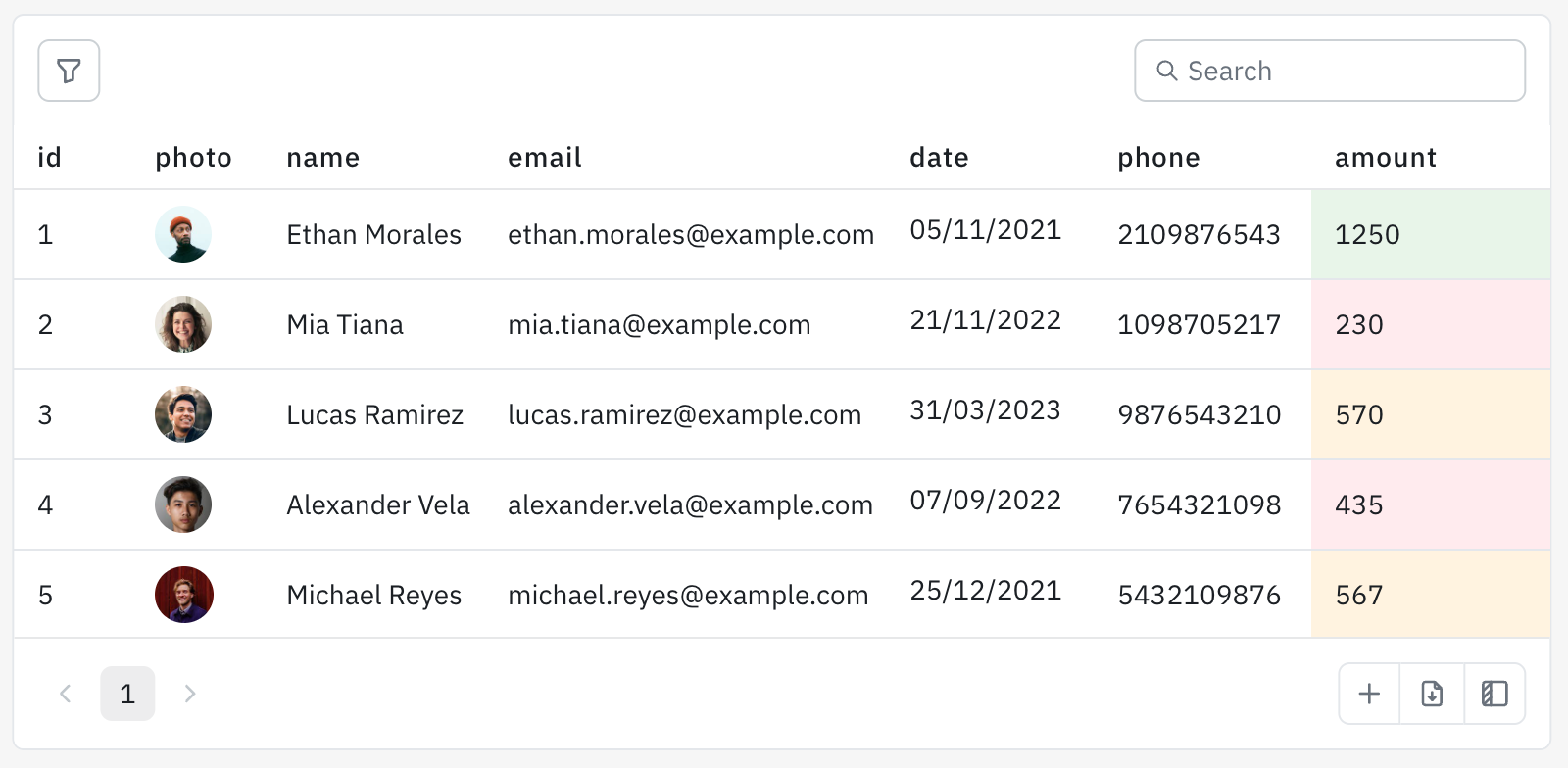

Cell Background Color Based on Cell Value

Highlight a Sales column where high-value cells get a green background and low-value cells get a red background:

{{cellValue >= 1000 ? '#e8f5e9' : cellValue >= 500 ? '#fff3e0' : '#ffebee'}}

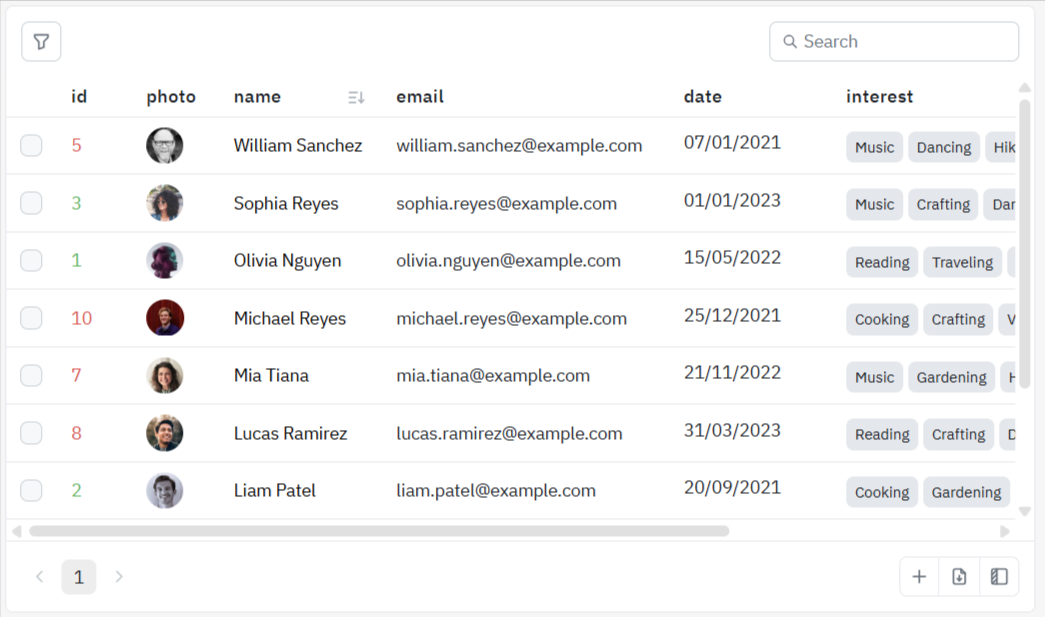

Text Color Based on Row Data

Change the text color of a id column based on the phone column in the same row:

{{ rowData.id > 3 ? '#D9534F' : '#5CB85C' }}

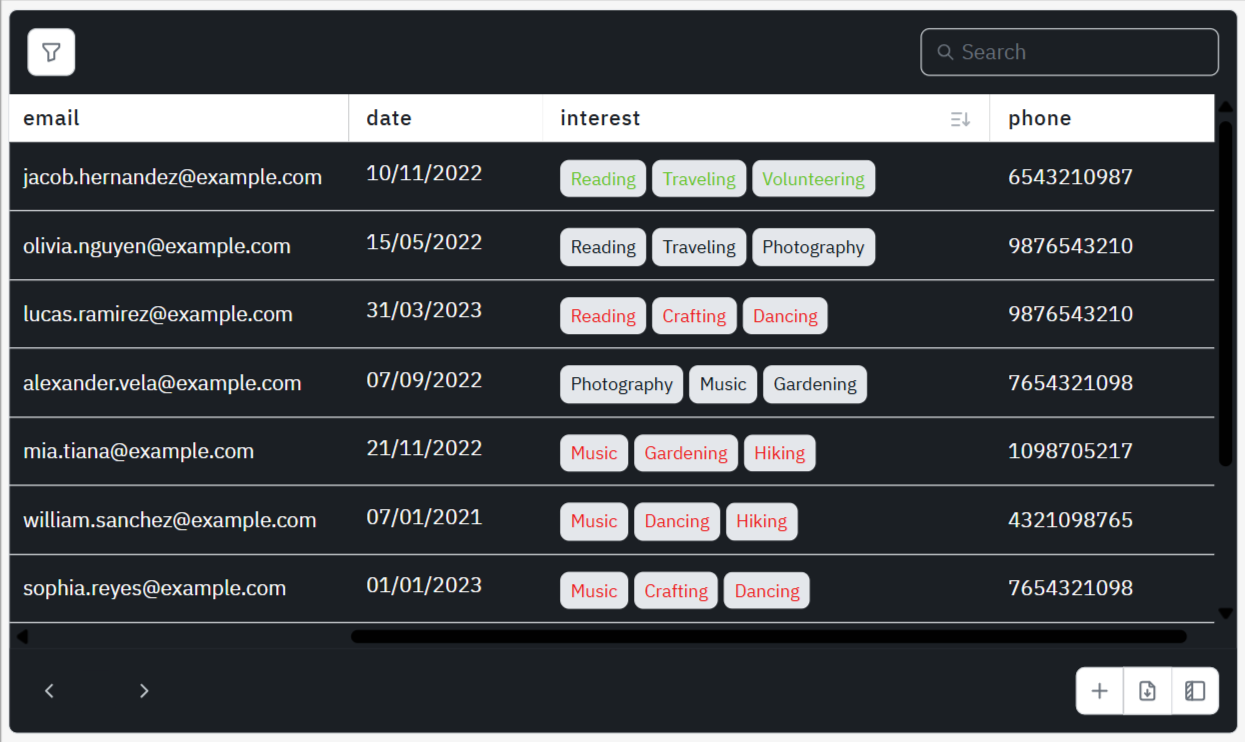

Cell Background Color Based on Row Data

Color-code a Title column based on the product's interest:

{{
  rowData.interest?.includes('Photography') ? '#030f16' : rowData.interest?.includes('Traveling') ? '#5ec522' : '#ed1717'
}}

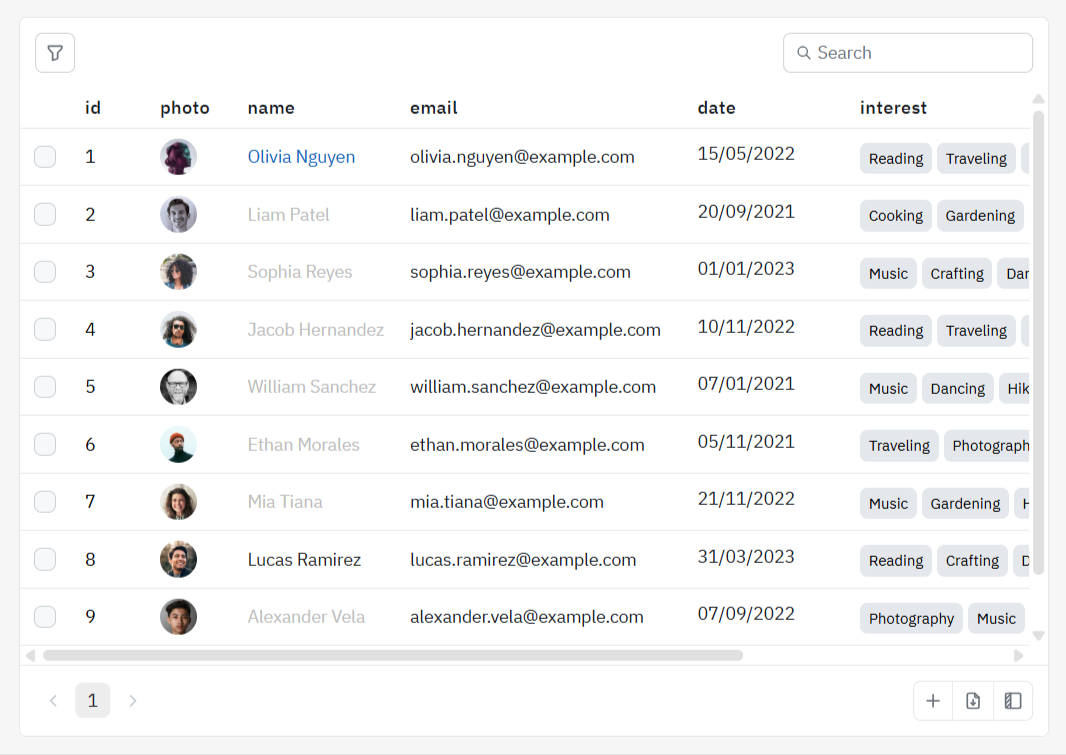

Combining Multiple Conditions

Use nested ternary operators or logical operators to build more complex rules. For example, format a Name column by combining id and phone from row data:

{{
  rowData.id === 1 ? '#1565c0' : rowData.phone > 9000000000 ? '#212121' : '#bdbdbd'
}}

info

You can use hex color codes, named CSS colors (red, lightgreen), or rgb()/hsl() functions in your expressions.

Dynamic Columns

When using Dynamic Columns, you can set conditional formatting directly in the column JSON definition using the textColor and cellBackgroundColor keys:

{
   "name": "Revenue",
   "columnType": "number",
   "key": "revenue",
   "textColor": "{{cellValue > 5000 ? '#2e7d32' : '#c62828'}}",
   "cellBackgroundColor": "{{cellValue > 5000 ? '#e8f5e9' : '#ffebee'}}",
   "isEditable": false
}

Disabling Action Buttons

You can conditionally disable action buttons on a per-row basis using the same cellValue and rowData identifiers available in conditional formatting. A disabled button appears greyed out and cannot be clicked.

Configuration

1. Click the Table component to open the properties panel.
2. Go to the Action Buttons section and select the action button you want to configure.
3. Find the Disable action button property.
4. Click the fx icon to switch to a dynamic expression.
5. Enter a JavaScript expression using cellValue or rowData that returns true to disable the button or false to keep it enabled.

Examples

Disable based on row status

Disable a button when the row's status is completed:

{{rowData.status === 'completed'}}

Disable based on a numeric threshold

Disable a "Refund" button when the amount is zero or negative:

{{rowData.amount <= 0}}

Disable based on multiple conditions

Disable an "Approve" button when the row is already approved or the user role is viewer:

{{rowData.approved === true || rowData.role === 'viewer'}}

Disable while a query is loading

Disable the button while a related query is in progress to prevent duplicate submissions:

{{queries.updateRecord.isLoading}}

Related

• Using fx for Dynamic Behaviour — Writing dynamic expressions across ToolJet components.
