Upload And View Images Using Base64 String

This guide shows how to upload and view images using the base64 string format in your ToolJet application.

1. Create a New Table In ToolJet Database​

  • Create a new table named test_db.

  • The id field will be present by default to create a unique identifier for each record in our database table.

  • Click on Add more columns button and add this column: image and select varchar as datatype.

While we are using the ToolJet Database for this guide; feel free to use other databases while applying the same principles.

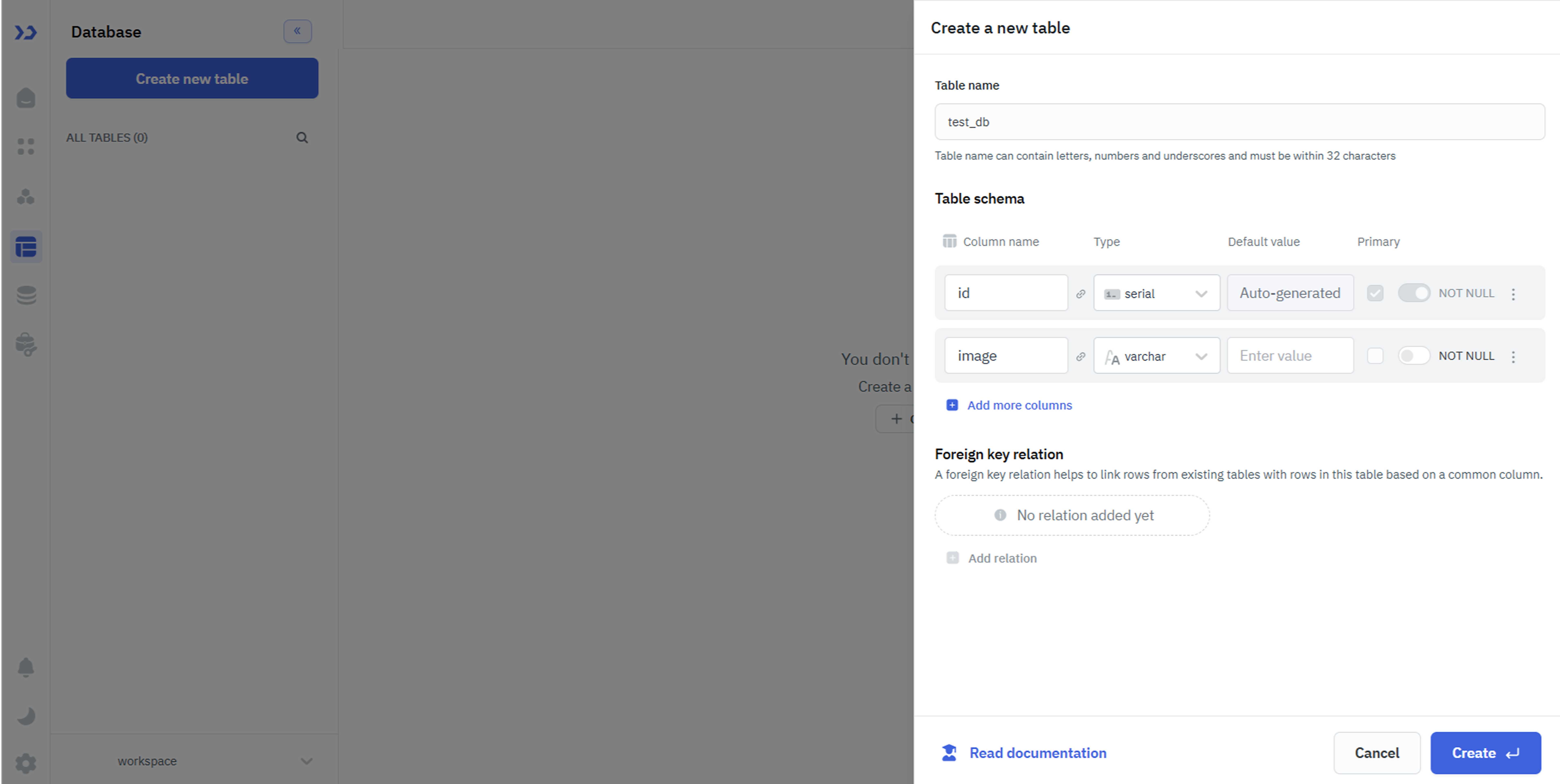

Create New Table in TJDB

2. Upload File To The Database​

  • Create a new application and name it Upload Images Example.

  • Drag and drop a Filepicker component on the canvas from the components library on the right.

  • Rename the filepicker component to image_picker.

  • Retain the default {{"image/*"}} or select file type as "Image files" setting for the Accept file types property in the image_picker component, as it's intended for image uploads.

  • Click on the image_picker component and select an image to upload.

  • After uploading, you will see the filename displayed on the filepicker component.

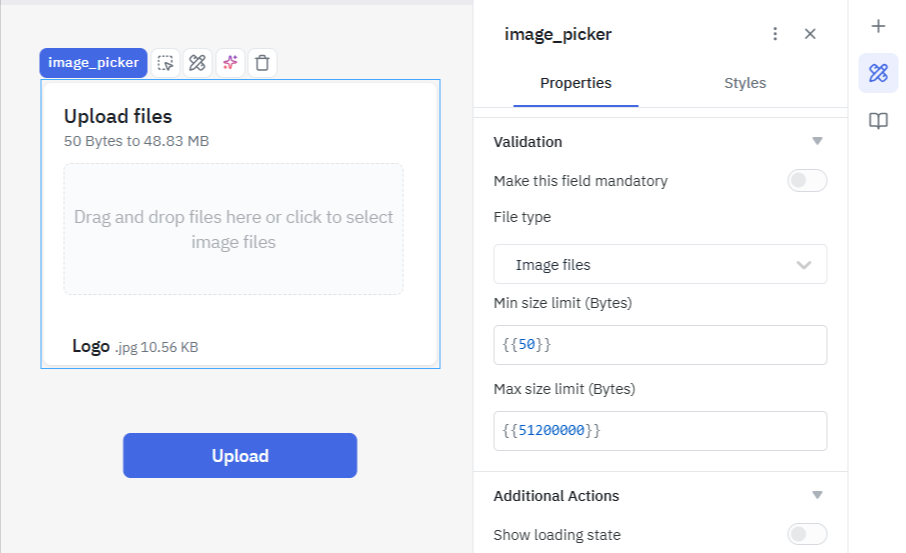

Uploaded Files using a filepicker

  • Click on the + Add button in the query panel to create a new query, choose ToolJet Database as the data source, select test_db as Table name, and Create Row as Operations. Name this query upload_files.

  • Under the Columns section, add this column image and set the value given below :

{{components.image_picker.file[0].base64Data}}

In the above query, we are using the exposed variables of the filepicker component to get the base64 string of the file we had uploaded earlier.

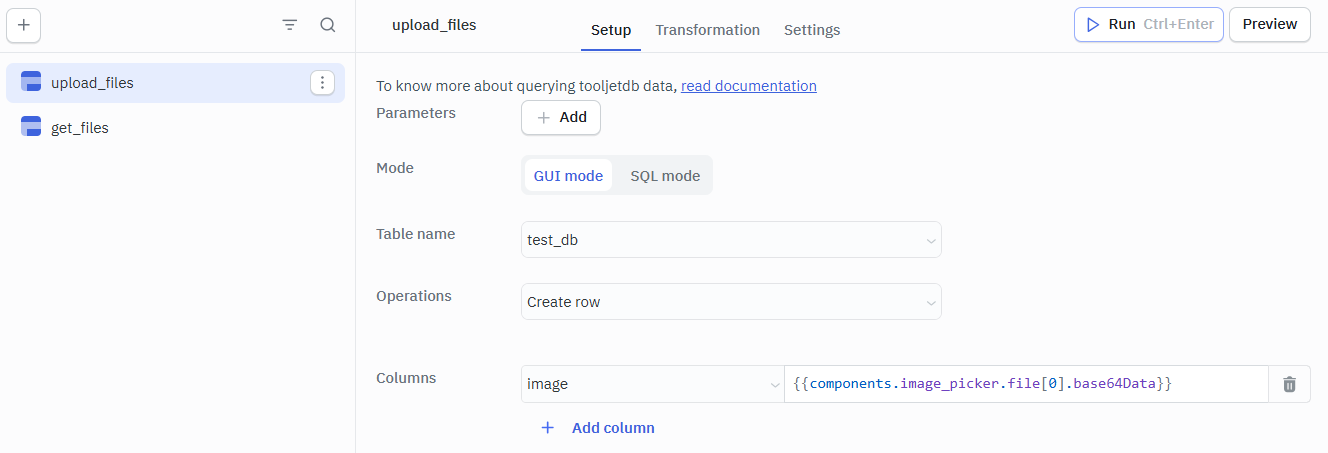

Add Files Query

  • Add a Button component below the filepicker and rename it to upload.

  • Set the Button's text to Upload and create a New event handler with the following settings: Event - On click, Action - Run Query and Query - upload_files.

  • Now, Click on the Upload button to upload the files that we had selected in the Filepicker component earlier.

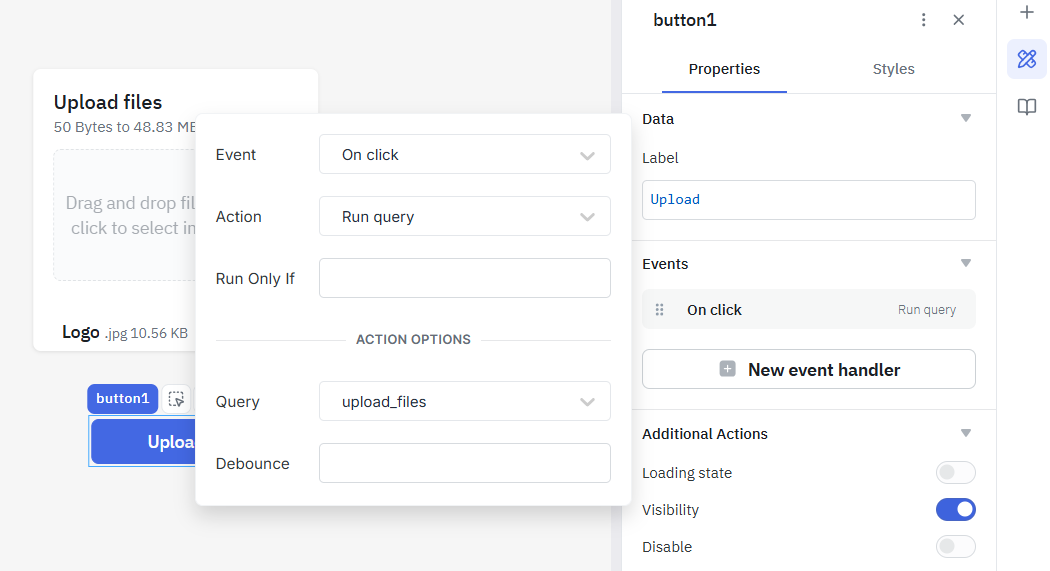

Upload Button Properties

The upload process is now complete. Whenever a file is selected in the Filepicker component and the upload button is clicked, the base64 string of the file will be automatically written to the database.

3. View Image File​

  • Create a query named get_files to retrieve base64 strings from test_db : Click on + Add button in the query panel, select ToolJet as Database, test_db as Table name, and List rows as Operations.

  • Enable Run this query on application load from settings.

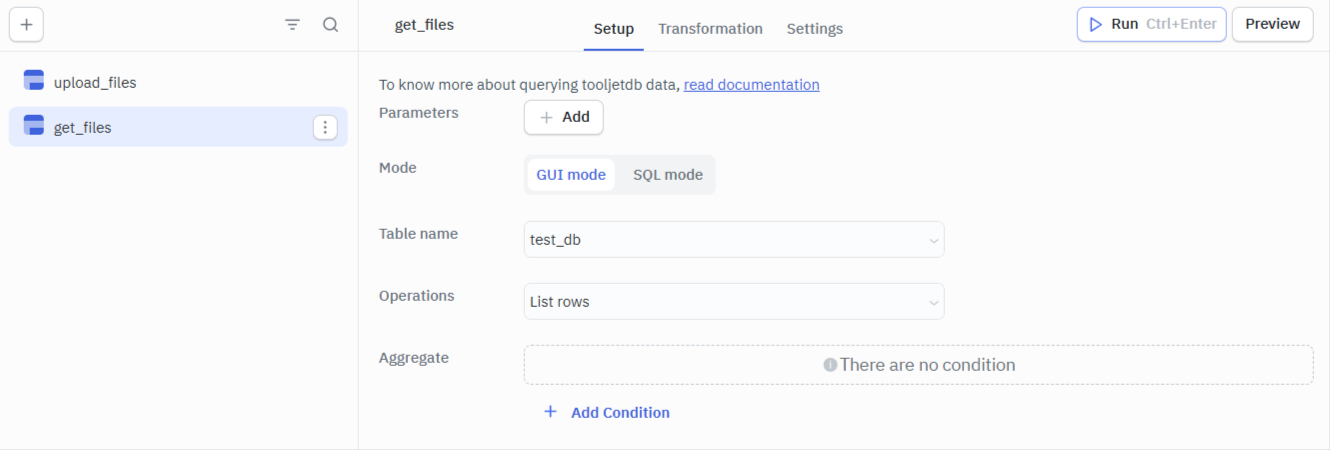

Fetch Files Query

  • Drag an Image component onto the canvas from the components library. Rename the Image component to display_image.

  • In the URL property of the display_image component, enter the following:

{{'data:image;base64,' + queries.get_files.data[0].image}}

The provided code constructs a Data URL to display the base64-encoded data as an image.

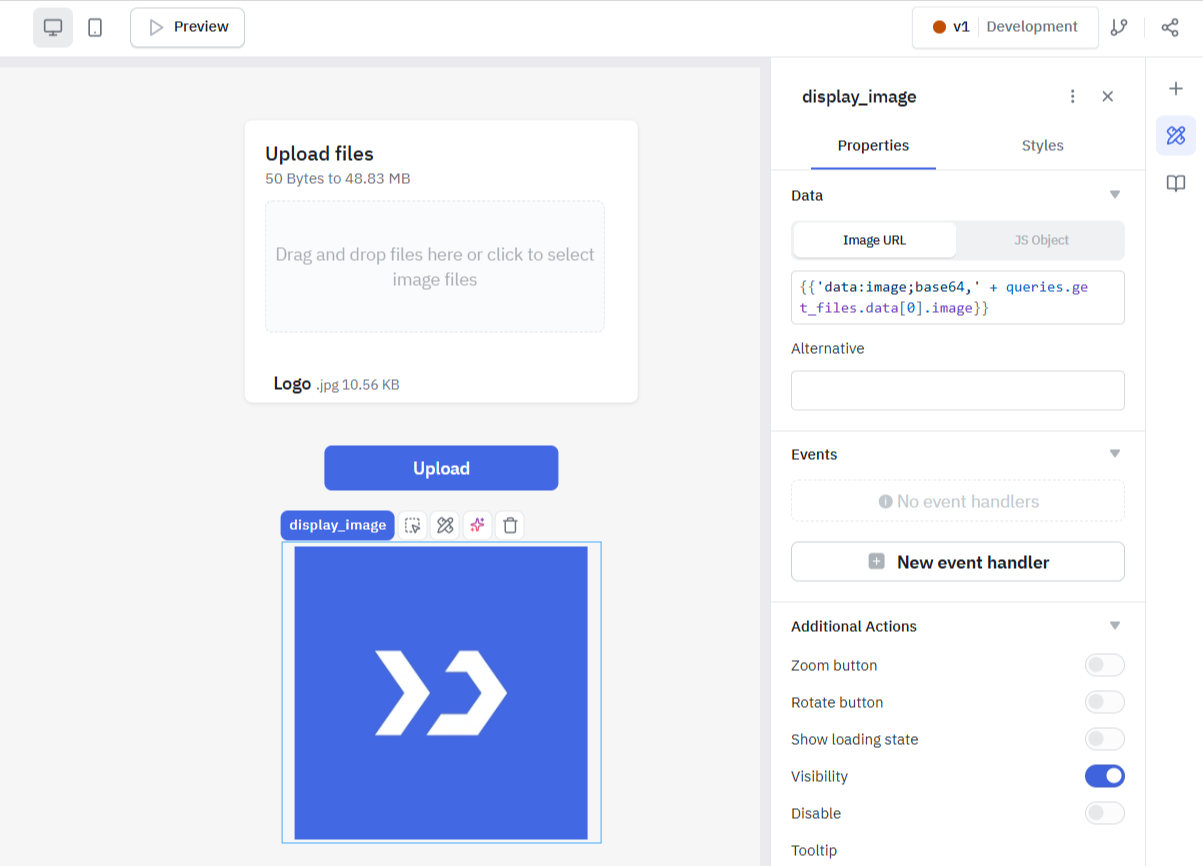

Final Preview
