Authorize.net

ToolJet supports the Authorize.net plugin to help you securely accept payments, manage customer profiles, and run end-to-end payment lifecycles directly from your applications. You can charge cards, save payment methods, handle refunds and voids, and manage tokenized customer profiles without writing backend code.

Configuration​

To configure the Authorize.net plugin in ToolJet, you will need the following credentials from your Authorize.net account:

  • API Login ID
  • Transaction Key

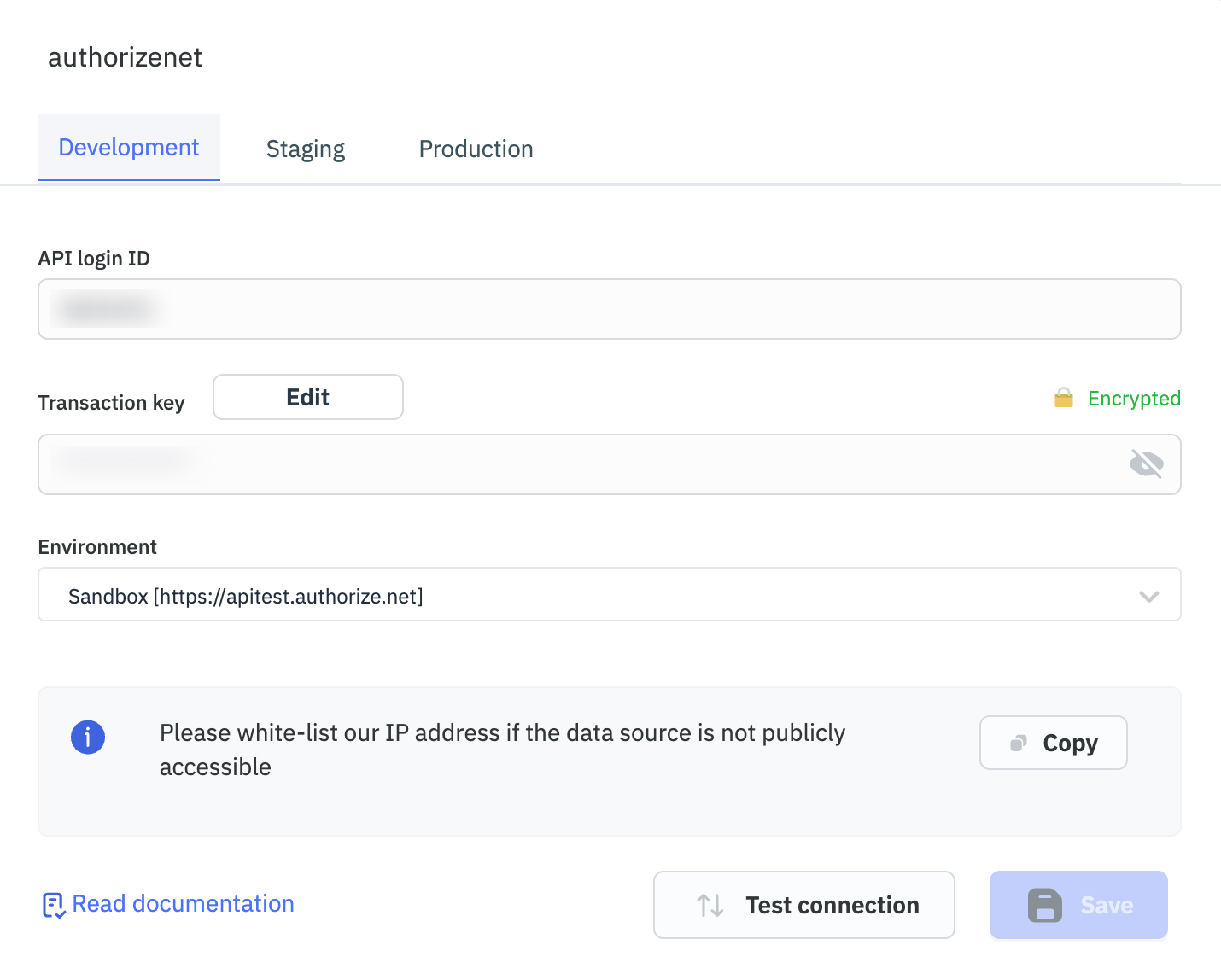

Authorize.net data source connection

You can generate these from the Authorize.net Merchant Interface → Settings → API Credentials & Keys section.

Supported Operation​

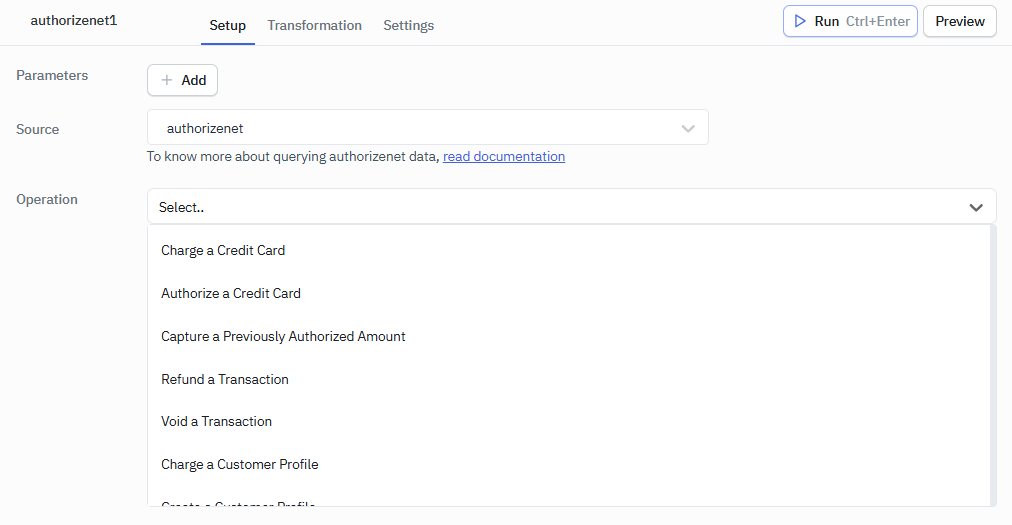

Authorize.net supported operations

Charge a Credit Card​

Creates and submits an auth-and-capture transaction.

Request Body

{
  "amount": "5.00",
  "cardNumber": "4007000000027",
  "expirationDate": "2027-04",
  "cardCode": "123",
  "refId": "123456",
  "lineItems": {
    "lineItem": [
      {
        "itemId": "1",
        "name": "Product Name",
        "description": "Product Description",
        "quantity": "1",
        "unitPrice": "5.00"
      }
    ]
  },
  "tax": {
    "amount": "0.50",
    "name": "Sales Tax",
    "description": "State Tax"
  },
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "address": "123 Main St",
    "city": "Seattle",
    "state": "WA",
    "zip": "98101",
    "country": "US"
  }
}
Response Example

refId:"123456" messages : resultCode:"Ok" code:"I00001" text:"Successful." transactionResponse : responseCode:"1" authCode:"IS0IR5" avsResultCode:"Y" cvvResultCode:"P" cavvResultCode:"2" transId:"80051037662" refTransID:"" transHash:"" testRequest:"0" accountNumber:"XXXX0027" accountType:"Visa"

Authorize a Credit Card​

Places a hold on the amount without capturing the funds.

Request Body

{
  "amount": "5.00",
  "cardNumber": "4111111111111111",
  "expirationDate": "2027-09",
  "cardCode": "123",
  "refId": "123456",
  "lineItems": {
    "lineItem": [
      {
        "itemId": "1",
        "name": "Product Name",
        "description": "Product Description",
        "quantity": "1",
        "unitPrice": "5.00"
      }
    ]
  },
  "tax": {
    "amount": "0.50",
    "name": "Sales Tax",
    "description": "State Tax"
  },
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "address": "123 Main St",
    "city": "Seattle",
    "state": "WA",
    "zip": "98101",
    "country": "US"
  }
}
Response Example

refId:"123456" networkTransId:"BR11UQFRDSM16890455GKA5" responseCode:"1" authCode:"XSRDNS" avsResultCode:"Y" cvvResultCode:"P" cavvResultCode:"2" transId:"80051037939"

Capture a Previously Authorized Amount​

Captures funds from a previously authorized transaction.

Request Body

{
  "refTransId": "1234567890",
  "amount": "5.00",
  "refId": "123456"
}
Response Example

========= ORDER INFORMATION ========= Invoice : Description : Goods or Services Amount : 5.00 (USD) Payment Method: Visa xxxx0027 Transaction Type: Authorization and Capture

Refund a Transaction​

Refunds a previously captured transaction.

Request Body

{
  "transId": "80051038433",
  "amount": "1.00",
  "cardNumber": "0015",
  "expirationDate": "XXXX"
}
Response Example

============== RESULTS ============== Response : Refund has been successful. Auth Code : NRY5S0 Transaction ID : 80051038433

Void a Transaction​

Voids an unsettled transaction.

Request Body

{
  "transId": "12345678",
  "refId": "optional-ref-123",
  "terminalNumber": "optional-terminal"
}
Response Example

refId:"optional-ref-123" resultCode:"Ok" responseCode:"1" authCode:"NRY5S0" avsResultCode:"P" cvvResultCode:"" cavvResultCode:"" transId:"80051038433" refTransID:"80051038433" transHash:"" testRequest:"0" accountNumber:"XXXX0027" accountType:"Visa" transHashSha2:""

Charge a Customer Profile​

Charges a saved customer payment profile.

Request Body

{
  "customerProfileId": "40338125",
  "customerPaymentProfileId": "1000177237",
  "amount": "45.00",
  "refId": "123456",
  "lineItems": {
    "lineItem": [
      {
        "itemId": "1",
        "name": "vase",
        "description": "Cannes logo",
        "quantity": "18",
        "unitPrice": "45.00"
      }
    ]
  }
}
Response Example

"refId": "ref-789456", "resultCode": "Ok", "responseCode": "1", "authCode": "Q8YH72", "avsResultCode": "Y", "cvvResultCode": "M", "cavvResultCode": "", "transId": "90081234567", "refTransID": "", "transHash": "", "testRequest": "0", "accountNumber": "XXXX0027", "accountType": "Visa", "messages": "text": "This transaction has been approved." "transHashSha2": "", "message": "Customer profile charged successfully."

Create a Customer Profile​

Creates a new customer profile in Authorize.net.

Request Body

{
  "email": "[email protected]",
  "description": "Customer Name",
  "merchantCustomerId": "12345"
}
Response Example

resultCode:"Ok" code:"I00001" text:"Successful." customerProfileId:"123456"

Get Customer Profile​

Fetches the details of an existing customer profile.

Request Body

{
  "customerProfileId": "123456",
  "refId": "ref123",
  "includeIssuerInfo": true
}
Response Example

code:"I00001" text:"Successful." merchantCustomerId:"12345" description:"Customer Name" email:"[email protected]" customerProfileId:"123456" profileType:"regular"

Get Customer Profile IDs​

Fetches all customer profile IDs.

  • No parameter needed.

Update Customer Profile​

Updates an existing customer profile.

Request Body

{
  "customerProfileId": "123456",
  "email": "[email protected]",
  "description": "Updated Name"
}
Response Example

resultCode:"Ok" code:"I00001" text:"Successful."

Delete Customer Profile​

Deletes an existing customer profile.

Request Body

{
  "customerProfileId": "123456"
}
Response Example

resultCode:"Ok" code:"I00001" text:"Successful."

Create Customer Payment Profile​

Creates a new payment profile under an existing customer profile.

Request Body

{
  "customerProfileId": "123456",
  "cardNumber": "4111111111111111",
  "expirationDate": "2028-10",
  "cardCode": "123",
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "address": "123 Main St",
    "city": "Bellevue",
    "state": "WA",
    "zip": "98004",
    "country": "US",
    "phoneNumber": "000-000-0000"
  },
  "defaultPaymentProfile": false,
  "validationMode": "liveMode"
}
Response Example

Invoice : none Description : Test transaction for ValidateCustomerPaymentProfile. Amount : 10.00 (USD) Payment Method: Visa xxxx1111 Transaction Type: Authorization Only Response : This transaction has been approved. Auth Code : ABS166

Get Customer Payment Profile​

Fetches details of a specific payment profile.

Request Body

{
  "customerProfileId": "10000",
  "customerPaymentProfileId": "20000",
  "includeIssuerInfo": "true",
  "refId": "get-payment-001"
}
Response Example

"refId": "get-payment-001", "resultCode": "Ok", "customerProfileId": "10000", "customerPaymentProfileId": "20000" "message": "Customer payment profile retrieved successfully."

Validate Customer Payment Profile​

Validates a saved customer payment profile.

Request Body

{
  "customerProfileId": "123456",
  "customerPaymentProfileId": "234567",
  "validationMode": "testMode"
}
Response Example

"resultCode": "Ok", "customerProfileId": "123456", "customerPaymentProfileId": "234567" "code": "I00001", "text": "Customer payment profile validation successful."

Update Customer Payment Profile​

Updates an existing customer payment profile.

Request Body

{
  "customerProfileId": "10000",
  "customerPaymentProfileId": "20000",
  "cardNumber": "4111111111111111",
  "expirationDate": "2029-05",
  "billTo": {
    "firstName": "John",
    "lastName": "Doe",
    "address": "123 Main St.",
    "city": "Bellevue",
    "state": "WA",
    "zip": "98004",
    "country": "US",
    "phoneNumber": "000-000-0000"
  },
  "defaultPaymentProfile": false,
  "validationMode": "liveMode"
}
Response Example

"resultCode": "Ok", "customerProfileId": "10000", "customerPaymentProfileId": "20000", "validationMode": "liveMode" "message": "Payment profile updated."

Delete Customer Payment Profile​

Deletes a payment profile under a customer profile.

Request Body

{
  "customerProfileId": "123456",
  "customerPaymentProfileId": "234567",
  "refId": "delete-payment-001"
}
Response Example

"code": "I00001", "text": "Customer payment profile deleted successfully."

Create a Customer Profile from a Transaction​

Creates a customer and payment profile using a successful transaction.

Request Body

{
  "transId": "1234567890",
  "customer": {
    "merchantCustomerId": "CUST123",
    "description": "Customer description",
    "email": "[email protected]"
  },
  "profileType": "regular",
  "refId": "create-profile-001"
}
Response Example

"refId": "create-profile-001", "resultCode": "Ok", "customerProfileId": "987654321" "customerPaymentProfileIdList": "555666777" "customerShippingAddressIdList":"888999000" "code": "I00001", "text": "Customer profile created successfully from transaction."
