HarperDB

HarperDB is a database and application development platform that is focused on performance and ease of use. With flexible user-defined APIs, simple HTTP/S interface, and a high-performance single-model data store that accommodates both NoSQL and SQL workloads, HarperDB scales with your application from proof of concept to production. ToolJet integrates with HarperDB, providing a streamlined interface for reading and writing data.

note

Before following this guide, it is recommended to check the following doc: Using Marketplace plugins.

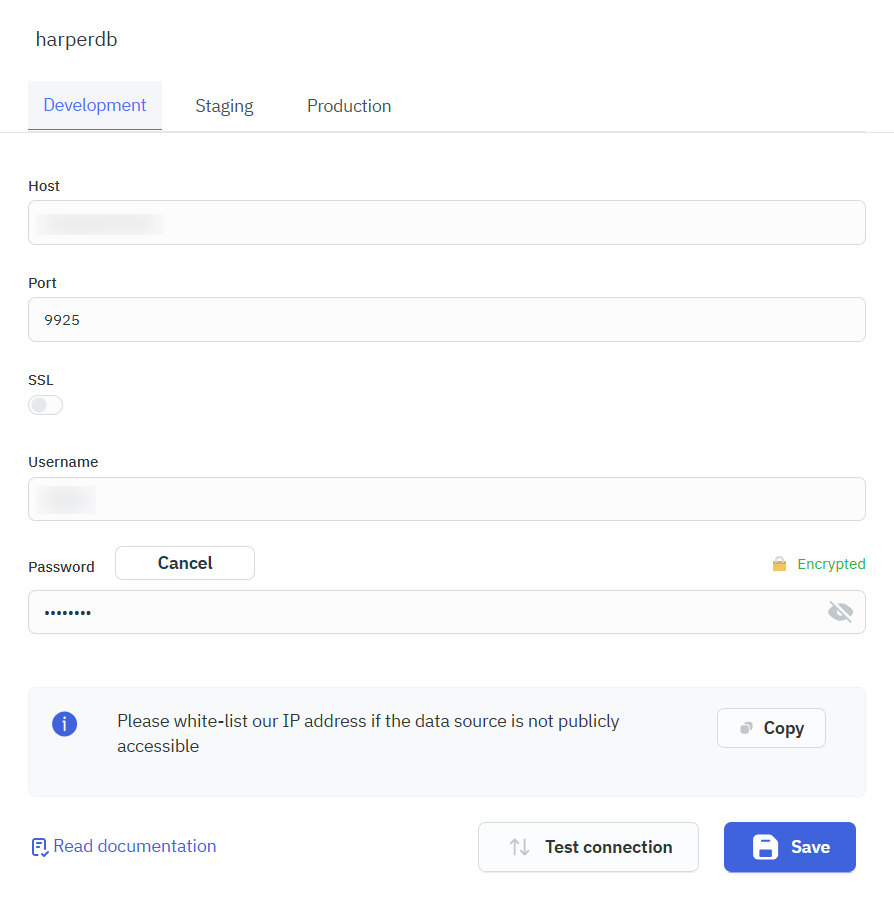

Connection

To establish a connection with HarperDB, you need the following credentials:

1. Host: The hostname or IP address of your HarperDB instance (e.g., 162.156.250.74 or myinstance.harperdbcloud.com).
2. Port: The port number configured for your server (default is 9925). If you are using HarperDB Studio(cloud), leave the field empty or set it to 443.
3. SSL: Indicates whether the connection requires SSL encryption.
4. Username: Your authentication username for HarperDB instance.
5. Password: Your password for authentication (hidden for security purposes).

Querying HarperDB

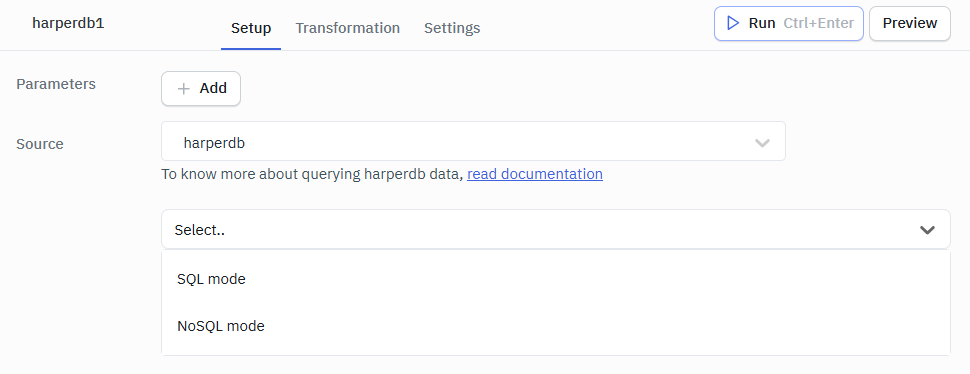

To perform queries on HarperDB, click the +Add button in the query manager located at the bottom panel of the app builder. Select the HarperDB from the Global Datasource section in the query editor.

SQL Mode

SQL mode enables you to perform various operations on the database using SQL statements.

• Select
• Insert
• Update
• Delete

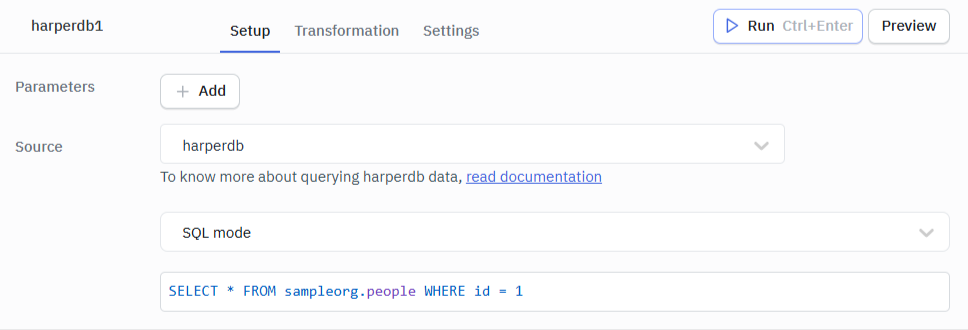

Select

The SELECT statement is used to query data from the database.

Syntax:

SELECT * FROM sampleorg.people WHERE id = 1

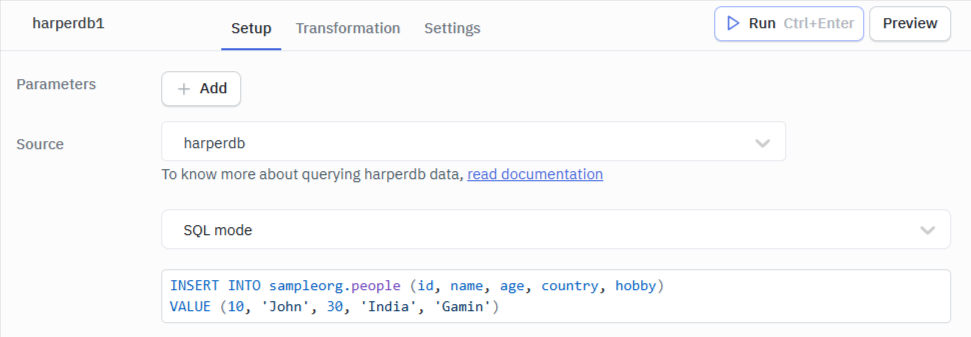

Insert

The INSERT statement is used to add one or more rows to a database table.

Syntax:

INSERT INTO sampleorg.people (id, name, age, country, hobby) VALUE (10, 'John', 30, 'India', 'Gaming')

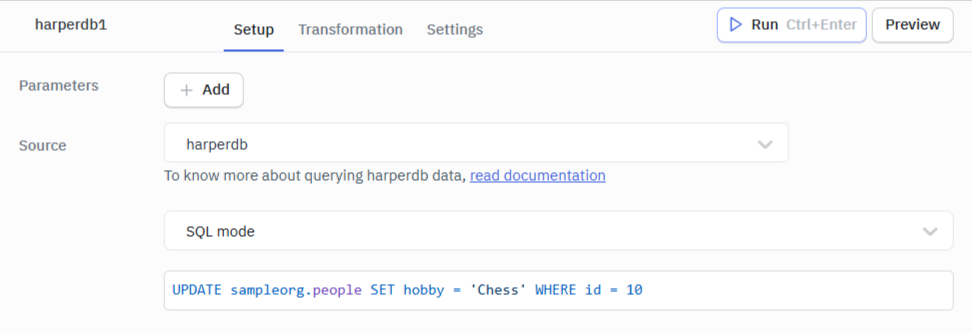

Update

The UPDATE statement is used to change the values of specified attributes in one or more rows in a database table.

Syntax:

UPDATE sampleorg.people SET hobby = 'Chess' WHERE id = 10

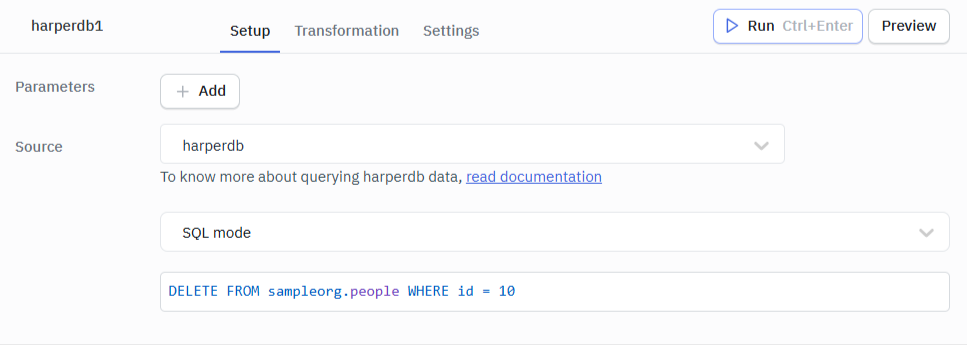

Delete

The DELETE statement is used to remove one or more rows of data from a database table.

Syntax:

DELETE FROM sampleorg.people WHERE id = 10

NoSQL Mode

NoSQL mode enables you to perform schema-less storage and retrieval of JSON documents.

• Insert
• Update
• Delete
• Search by hash
• Search by value
• SeleSearch by conditions

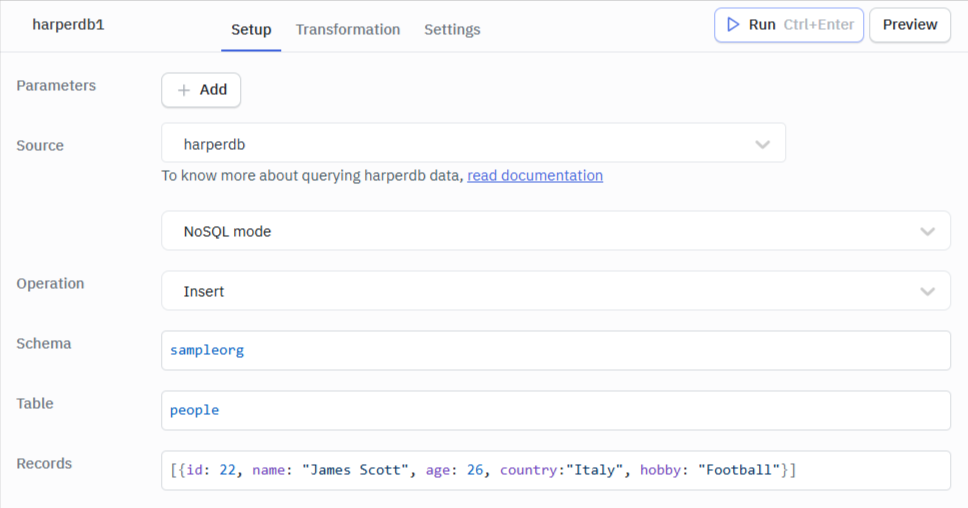

Insert (NoSQL)

Insert operation allows to add one or more rows of data to a database table.

Parameters	Description
Schema (required)	schema where the table you are inserting records into lives
Table (required)	table name where you want to insert records
Records (required)	array of one or more records for insert

Example Records:

[{id: 22, name: "James Scott", age: 26, country:"Italy", hobby: "Football"}]

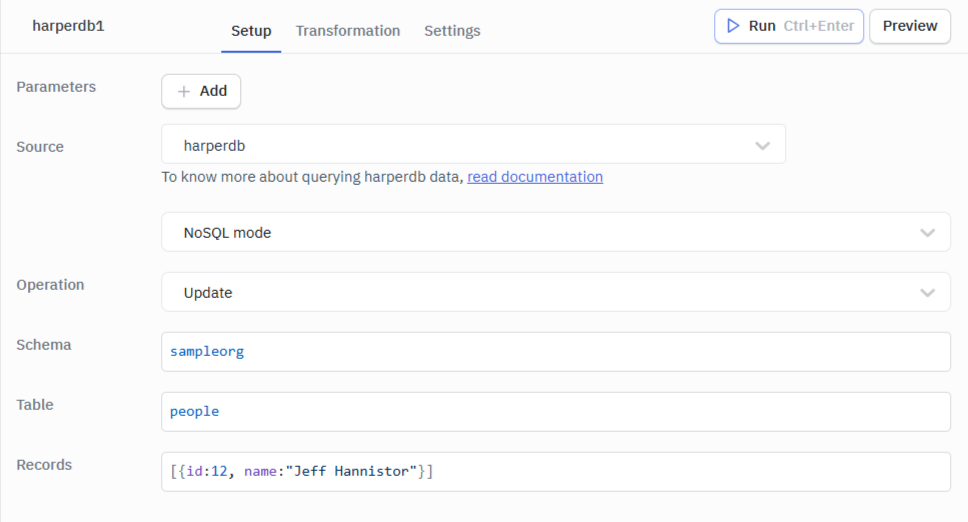

Update (NoSQL)

The Update operation modifies the values of specified attributes in one or more rows of a database table based on the hash attribute(primary key) that identifies the rows.

Parameters	Description
Schema (required)	schema where the table you are updating records into lives
Table (required)	table name where you want to update records
Records (required)	array of one or more records for update

Example Records:

[{id:12, name:"Jeff Hannistor"}] // Record having 12 as Primary key value will be updated

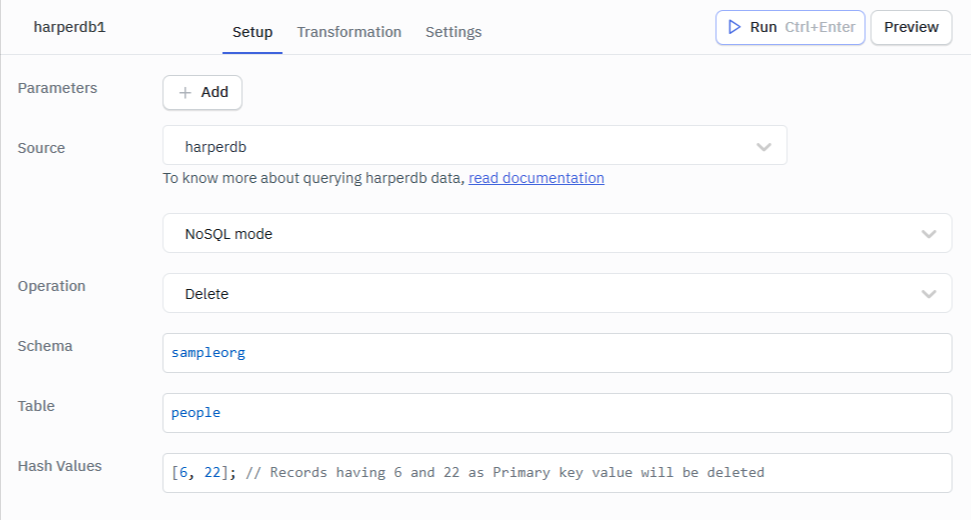

Delete (NoSQL)

Removes one or more rows of data from a specified table.

Parameters	Description
Schema (required)	schema where the table you are deleting records into lives
Table (required)	table name where you want to delete records
Hash Values (required)	array of one or more hash attribute (primary key) values, which identifies records to delete

Example Hash Values:

[6, 22]; // Records having 6 and 22 as Primary key value will be deleted

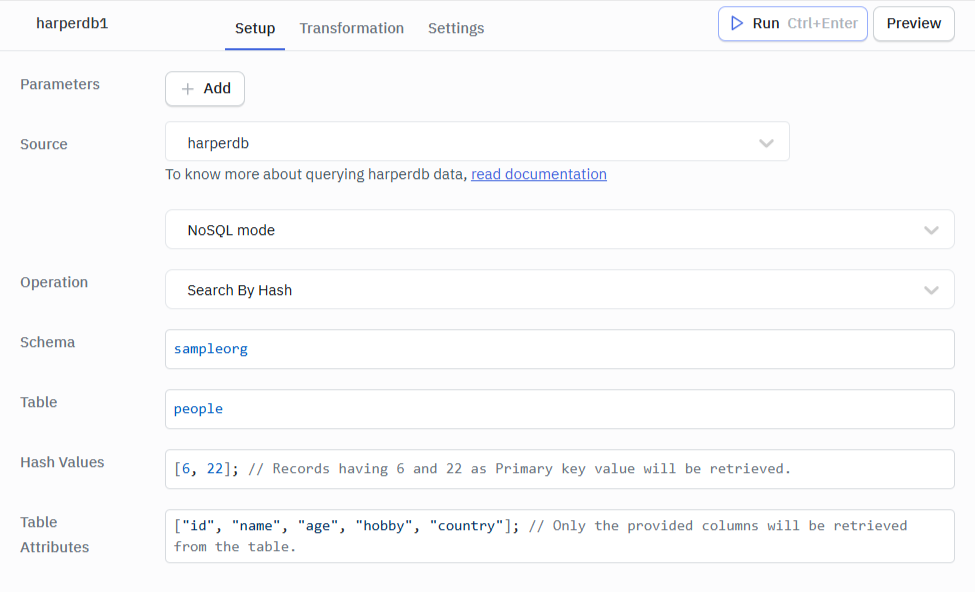

Search by hash

Returns data from a table for one or more hash values.

Parameters	Description
Schema (required)	schema where the table you are searching lives
Table (required)	table you wish to search
Hash Values (required)	array of hashes to retrieve
Table Attributes (required)	define which attributes you want returned.

Example Hash Values:

[124, 66]; // Records having 6 and 22 as Primary key value will be retrieved

Example Table Attributes:

["id", "name", "age", "hobby", "country"]; // Only the provided columns will be retrieved from the table

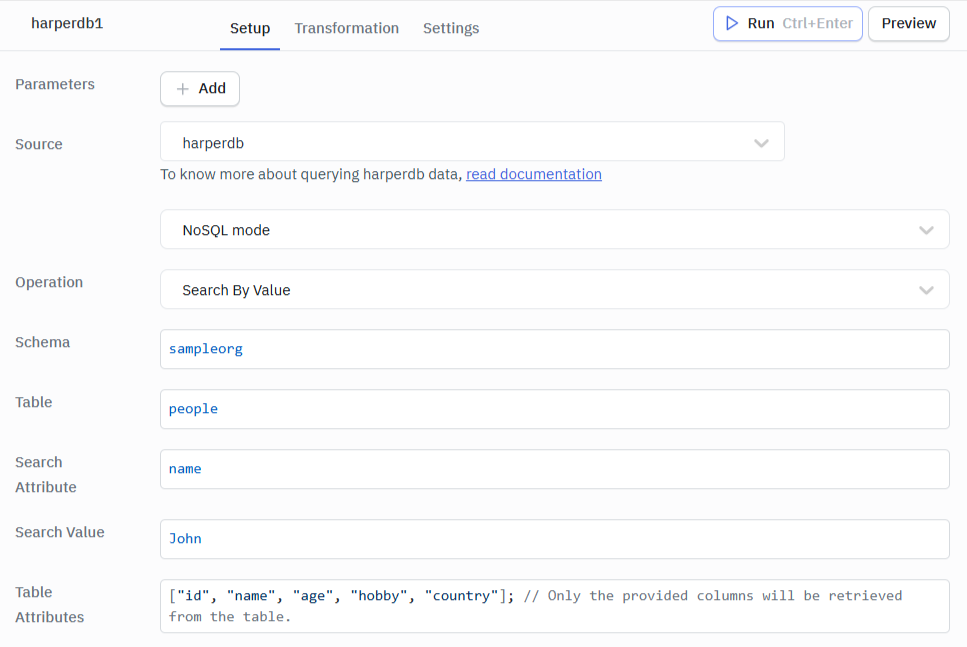

Search by value

Returns data from a table for a matching value.

Parameters	Description
Schema (required)	schema where the table you are searching lives
Table (required)	table you wish to search
Hash Values (required)	array of hashes to retrieve
Search Attribute (required)	attribute you wish to search can be any attribute
Search Value (required)	value you wish to search - wild cards are allowed.
Table Attributes (required)	define which attributes you want returned.

Example Search Attribute:

name

Example Search Value:

John Doe
or
Joh* // using wild card

Example Table Attributes:

["id", "name", "age", "hobby", "country"]; // Only the provided columns will be retrieved from the table

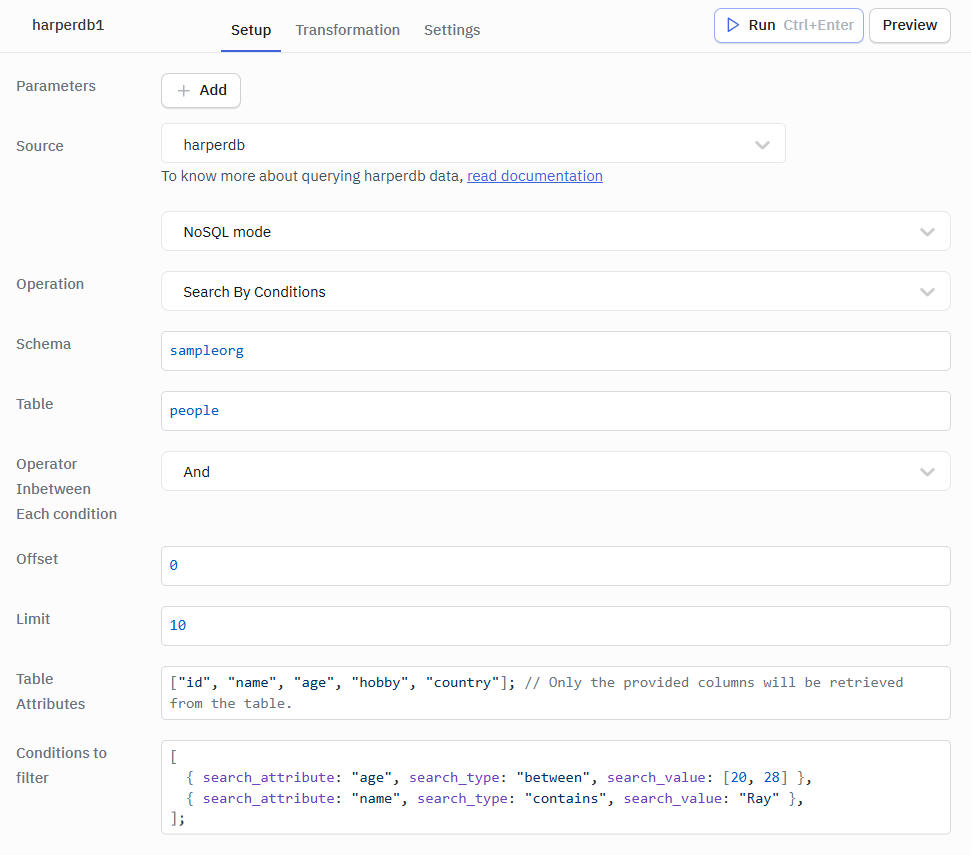

Search by conditions

Returns data from a table for one or more matching conditions.

Parameter	Description
Schema (required)	Schema where the table you are searching lives.
Table (required)	Table you wish to search.
Operator in-between each condition (optional)	The operator used between each condition — And or Or. Default is And.
Offset (optional)	The number of records that the query results will skip. Default is 0.
Limit (optional)	The number of records that the query results will include. Default is null (no limit).
Table Attributes (required)	Define which attributes you want returned.
Conditions to filter (required)	Array of condition objects used to filter results. Must include one or more objects in the array. Each object must include: • search_attribute (required) – Attribute you wish to search (can be any attribute). • search_type (required) – Type of search: equals, contains, starts_with, ends_with, greater_than, greater_than_equal, less_than, less_than_equal, between. • search_value (required) – Case-sensitive value to search. If search_type is between, use an array of two values.
Example Table Attributes:

["id", "name", "age", "hobby", "country"]; // Only the provided columns will be retrieved from the table

Example Conditions to filter:

[
  { search_attribute: "age", search_type: "between", search_value: [20, 28] },
  { search_attribute: "name", search_type: "contains", search_value: "Ray" },
];
