InfluxDB

ToolJet can connect to InfluxDB databases to read and write data. Use the Token authentication scheme to authenticate to the InfluxDB API. For more info visit InfluxDB docs.

Connection​

ToolJet connects to InfluxDB using :

  • API Token
  • Host
  • Port
  • Protocol (HTTP/HTTPS)
info

For generating API Token visit InfluxDB docs.

influx auth

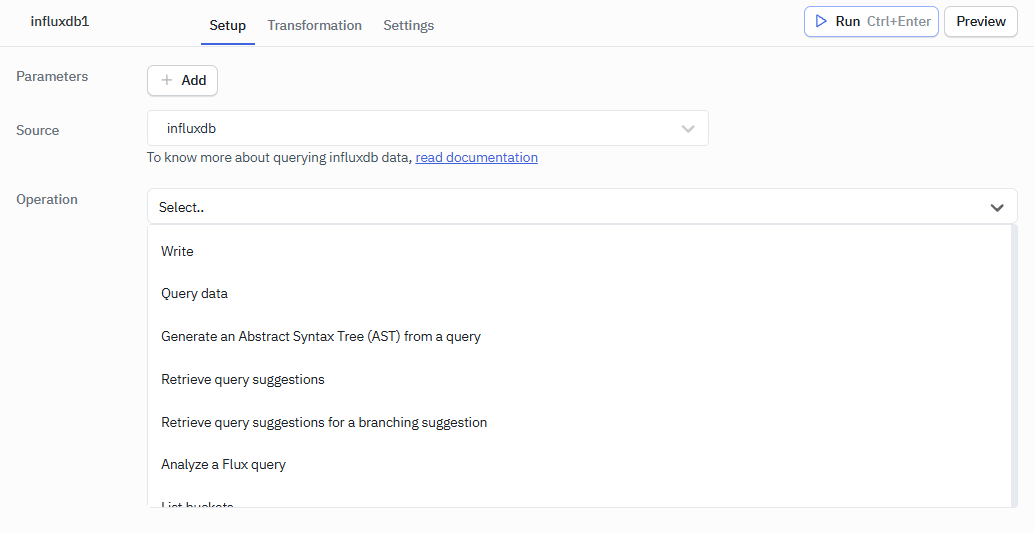

Supported Queries​

influx operations

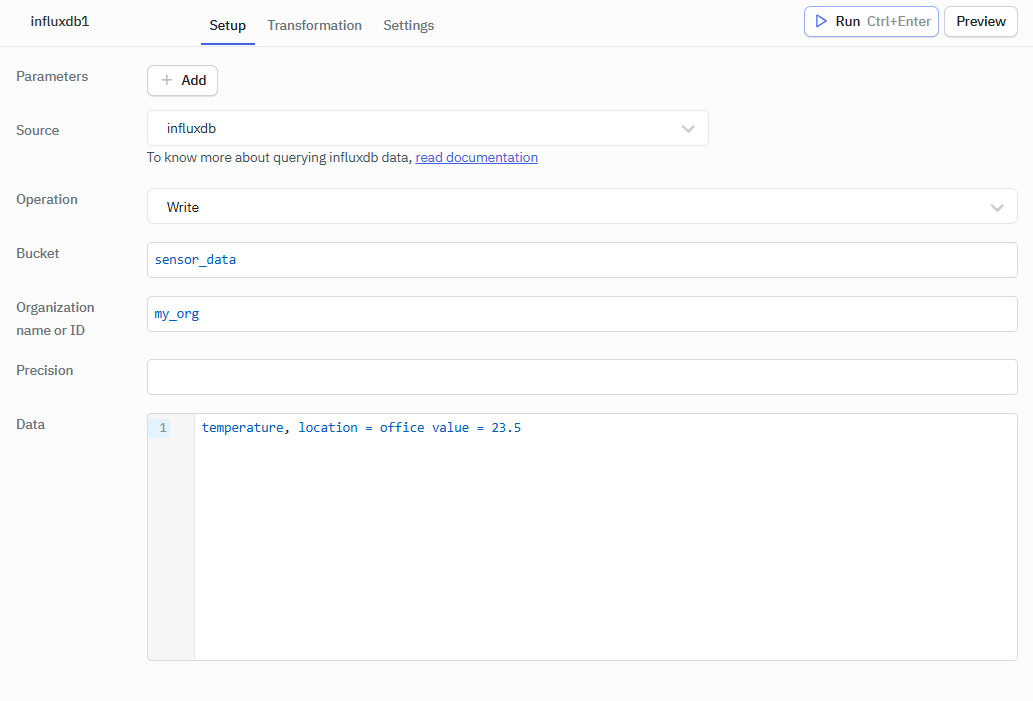

Write Data​

This operation writes data to a bucket.

Required Parameters:​

  • Bucket
  • Organization name or ID
  • Data

Optional Parameters:​

  • Precision
write query operations

Example​

temperature, location = office value = 23.5

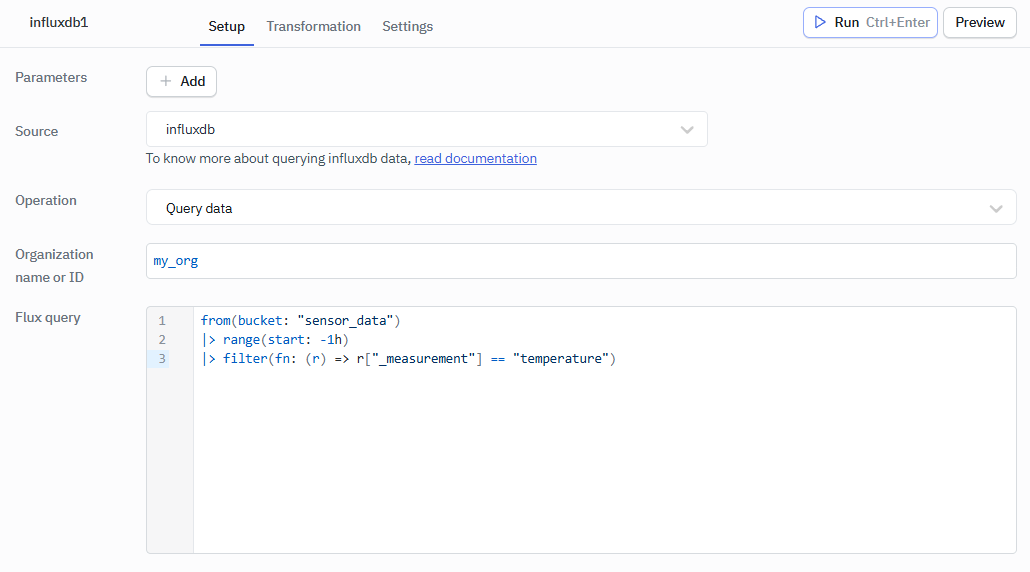

Query Data​

Retrieves data from InfluxDB buckets.

Required Parameters:​

  • Organization name or ID
  • Flux query
query data operations

Example​

from(bucket: "sensor_data")
|> range(start: -1h)
|> filter(fn: (r) => r["_measurement"] == "temperature")

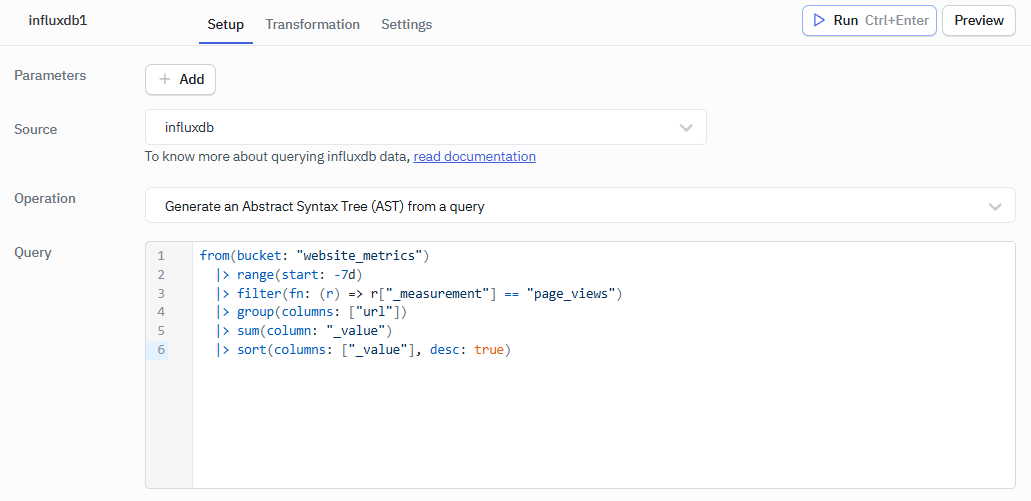

Generate an Abstract Syntax Tree (AST) from a Query​

This operation analyzes flux query and generates a query specification.

Required Parameters:​

  • Query
generate query operations

Example​

from(bucket: "website_metrics")
  |> range(start: -7d)
  |> filter(fn: (r) => r["_measurement"] == "page_views")
  |> group(columns: ["url"])
  |> sum(column: "_value")
  |> sort(columns: ["_value"], desc: true)

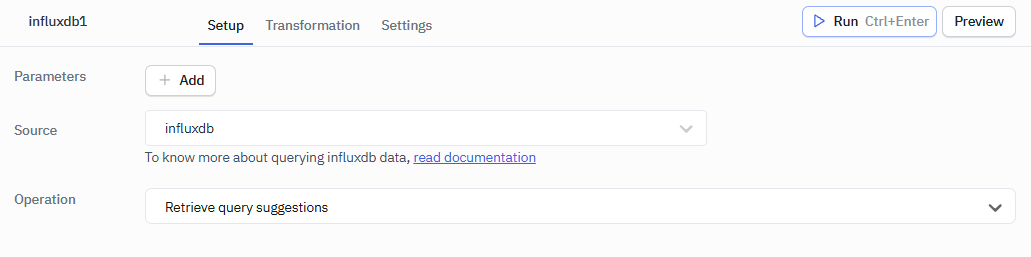

Retrieve Query Suggestions​

This query retrieve query suggestions.

retrieve operations

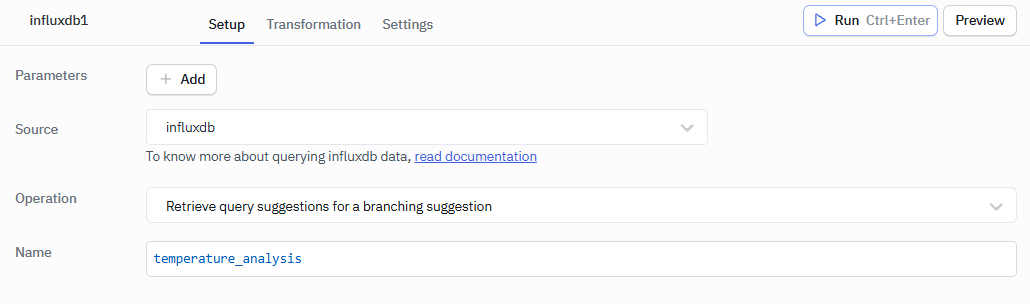

Retrieve Query Suggestions for a Branching Suggestion​

This operation retrieve query suggestions for a branching suggestion.

Required Parameters:​

  • Name
retrieve operations

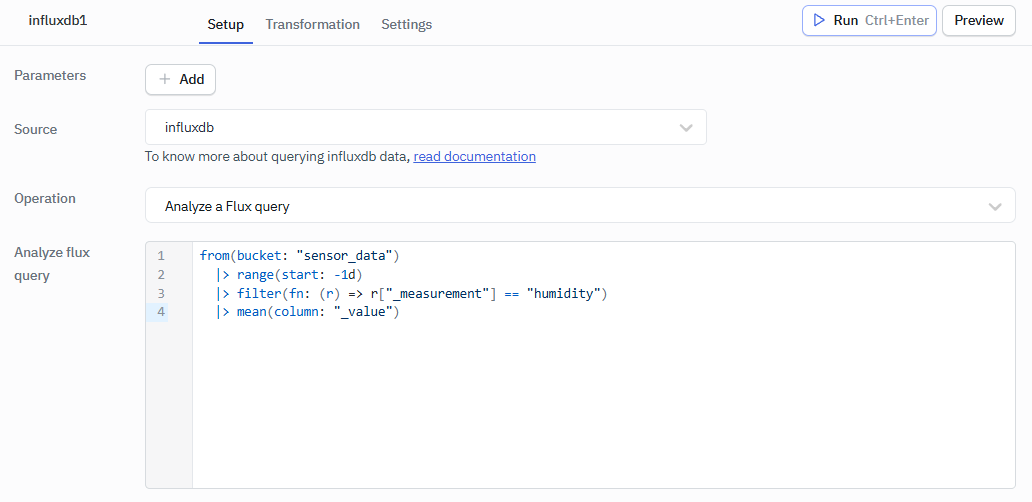

Analyze a Flux Query​

This Analyzes a Flux query.

Required Parameters:​

  • Query
analyze query operations

Example​

from(bucket: "sensor_data")
  |> range(start: -1d)
  |> filter(fn: (r) => r["_measurement"] == "humidity")
  |> mean(column: "_value")

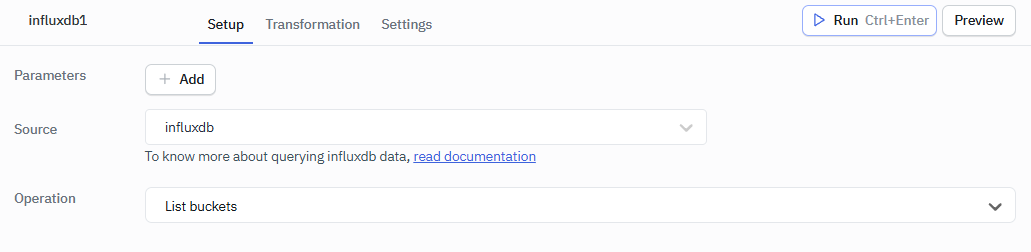

List Buckets​

This operation lists all the buckets in a database.

list operations

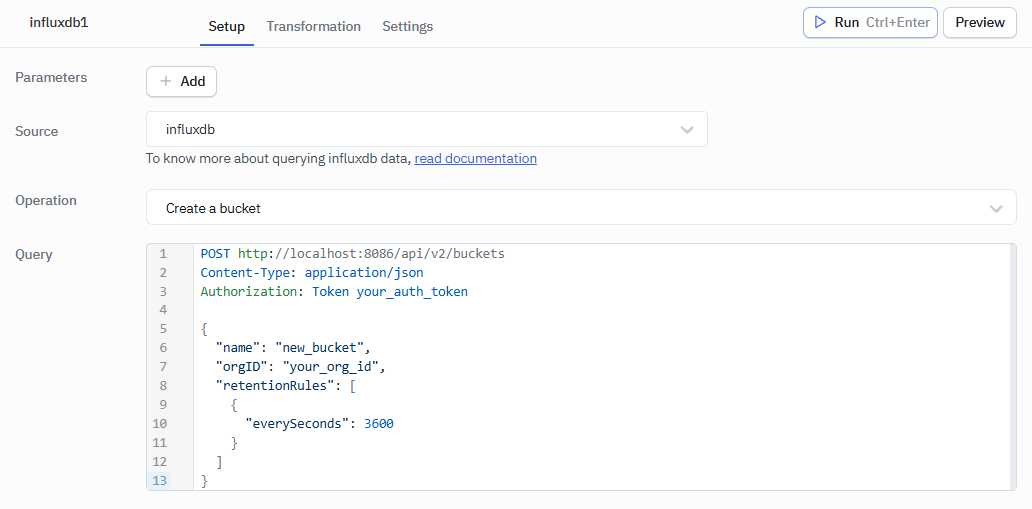

Create a Bucket​

This operation creates a bucket in database.

Required Parameters:​

  • Query
create operations

Example​

POST http://localhost:8086/api/v2/buckets
Content-Type: application/json
Authorization: Token your_auth_token

{
  "name": "new_bucket",
  "orgID": "your_org_id",
  "retentionRules": [
    {
      "everySeconds": 3600
    }
  ]
}

Retrieve a Bucket​

This operation retrieve a bucket in a database.

Required Parameters:​

  • Bucket ID
retrieve operations

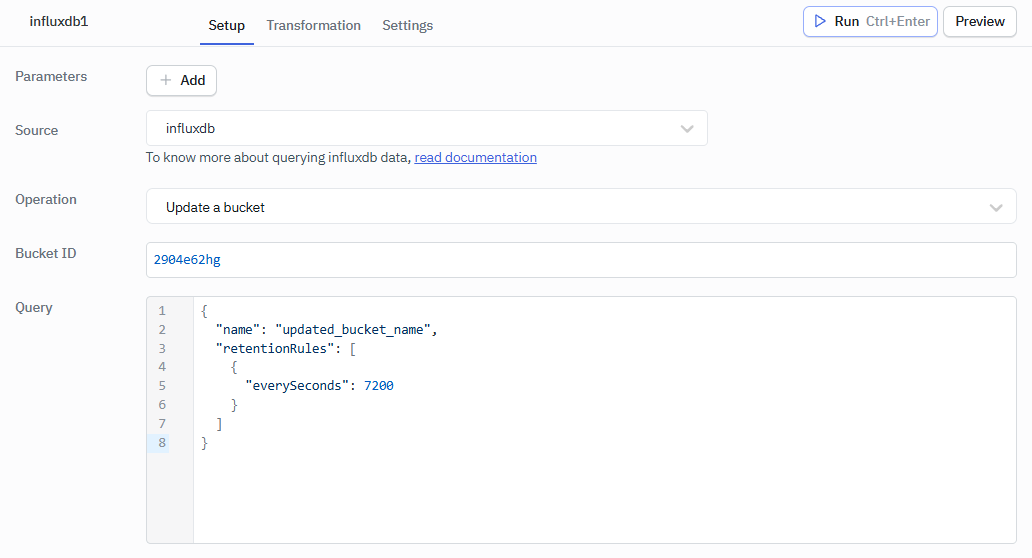

Update a Bucket​

This operaition updates the bucket in database.

Required Parameters:​

  • Bucket ID
  • Query
update operations

Example​

{
  "name": "updated_bucket_name",
  "retentionRules": [
    {
      "everySeconds": 7200
    }
  ]
}

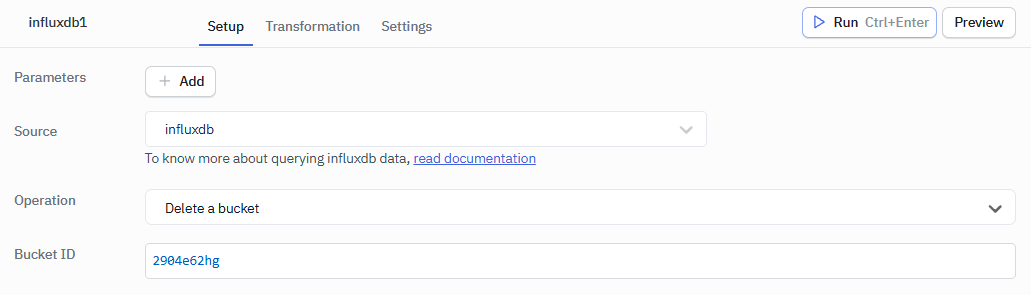

Delete a Bucket​

This operation delete the bucket in database.

Required Parameters:​

  • Bucket ID
delete operations
