GraphQL

ToolJet can establish connections with GraphQL endpoints, enabling the execution of queries and mutations.

Connection

To establish a connection with the GraphQL global datasource, you can either click on the + Add new datasource button located on the query panel or navigate to the Data Sources page through the ToolJet dashboard.

ToolJet requires the following to connect to a GraphQL datasource.

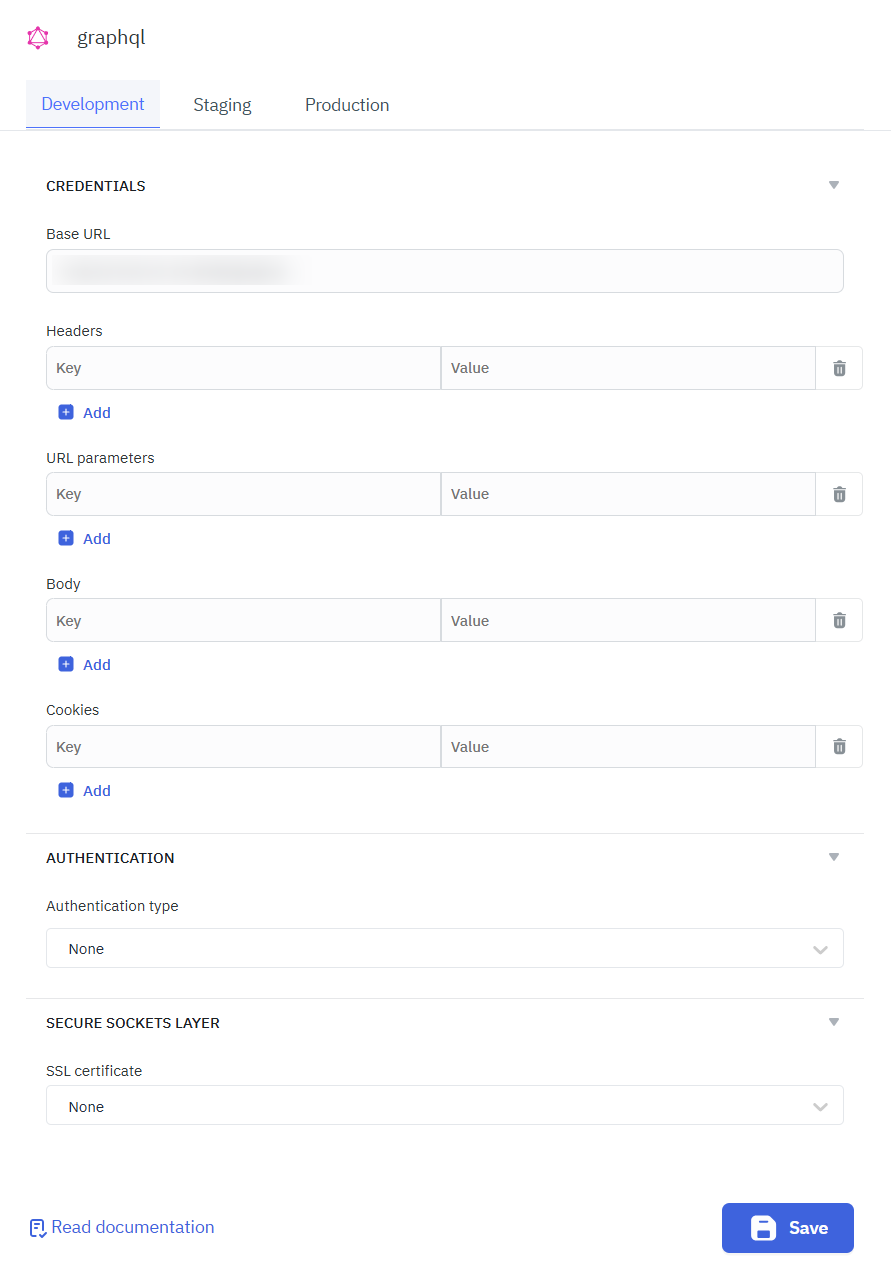

Credentials

• Base URL: The URL of the GraphQL API endpoint where requests are sent.
• Headers: Key-value pairs sent with the request to provide metadata such as authentication tokens or content type.
• URL parameters: Additional key-value pairs appended to the request URL as query string parameters.
• Body: The request payload containing the GraphQL query, variables, or mutation data.
• Cookies: Cookie values included with the request for session management or authentication.

Authentication Types

The method of authentication to use with GraphQL requests.

• None: No credentials or tokens are required.

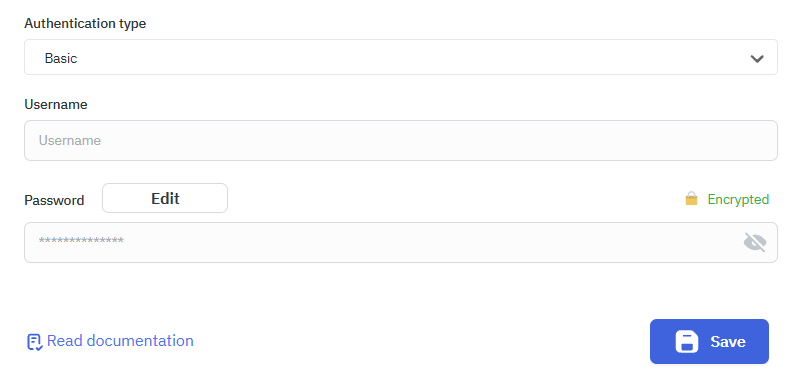

• Basic: Requires Username and Password.

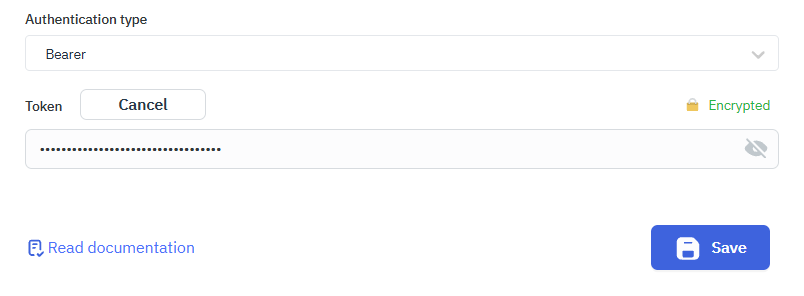

• Bearer: Requires a token, typically a JSON Web Token (JWT), to grant access.

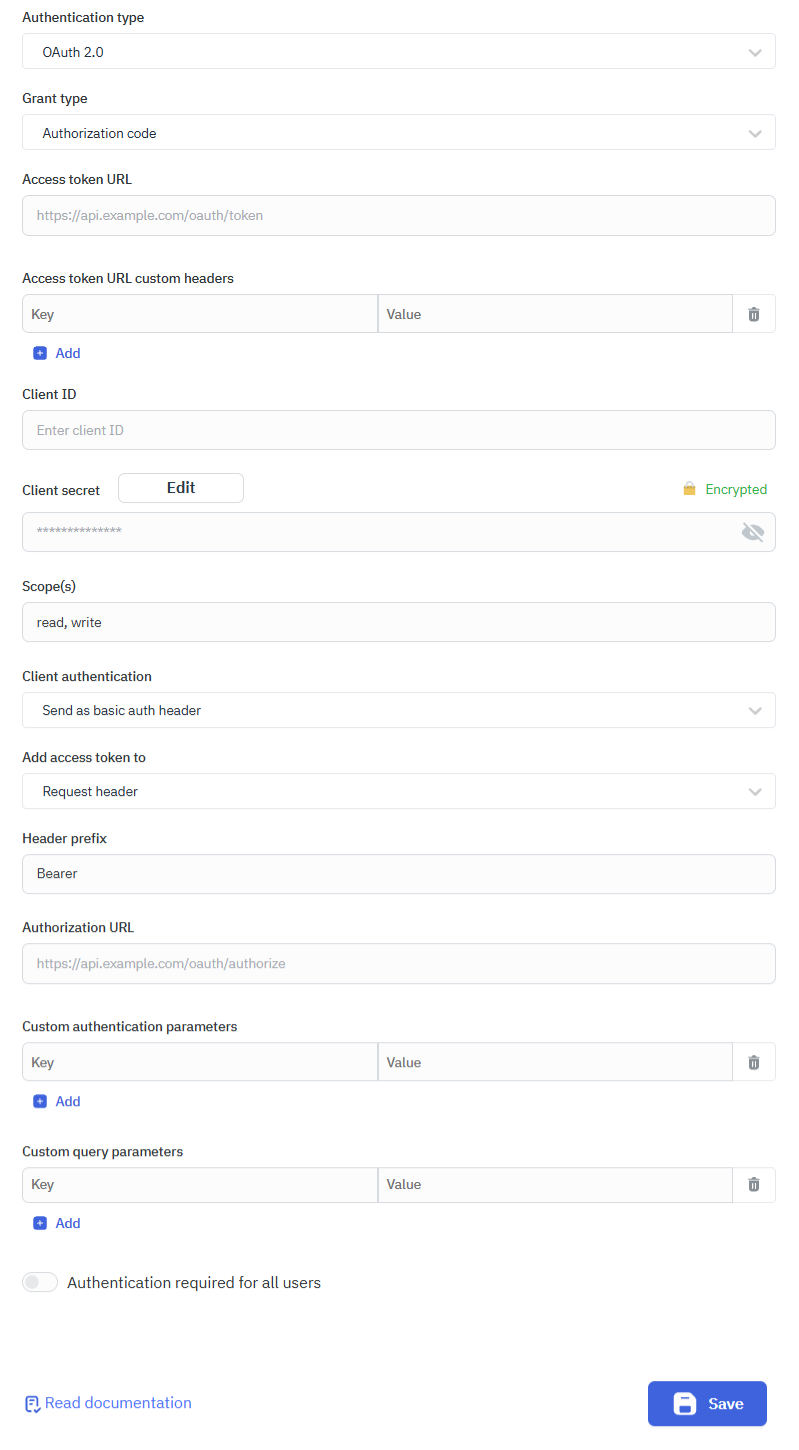

• OAuth 2.0: Select a Grant type, either Authorization code or Client credentials. Both grant types use Access token URL, Access token URL custom headers, Client ID, Client secret, Scope(s), and Client authentication. Scope(s) is pre-filled with read, write; replace it with the scopes your provider expects. Client authentication can be Send as basic auth header (default) or Send client credentials in body.

  • Authorization code also uses Add access token to (only Request header is available), Header prefix (default Bearer ), Authorization URL, Custom authentication parameters, and Custom query parameters. Turn on Authentication required for all users to have each user authorize with their own account the first time they run a query from this data source. When it's off, all users share one token.
  • Client credentials also uses Audience, which is sent with the token request when set. The access token is always sent in the Authorization header with the Bearer prefix.
  caution

  The Grant type dropdown also lists Authorization code with PKCE, but ToolJet doesn't send a code challenge or code verifier for it, so the flow doesn't work with providers that require PKCE. Use Authorization code or Client credentials.



Secure Sockets Layer (SSL)

• SSL certificate: The certificate to use with GraphQL requests. Supported types:
  • None (default): No custom certificate. The server's certificate isn't verified.
  • CA certificate: Requires a CA certificate in CA cert to verify the server certificate.
  • Client certificate: Requires Client key, Client cert, and CA cert to authenticate with the server.

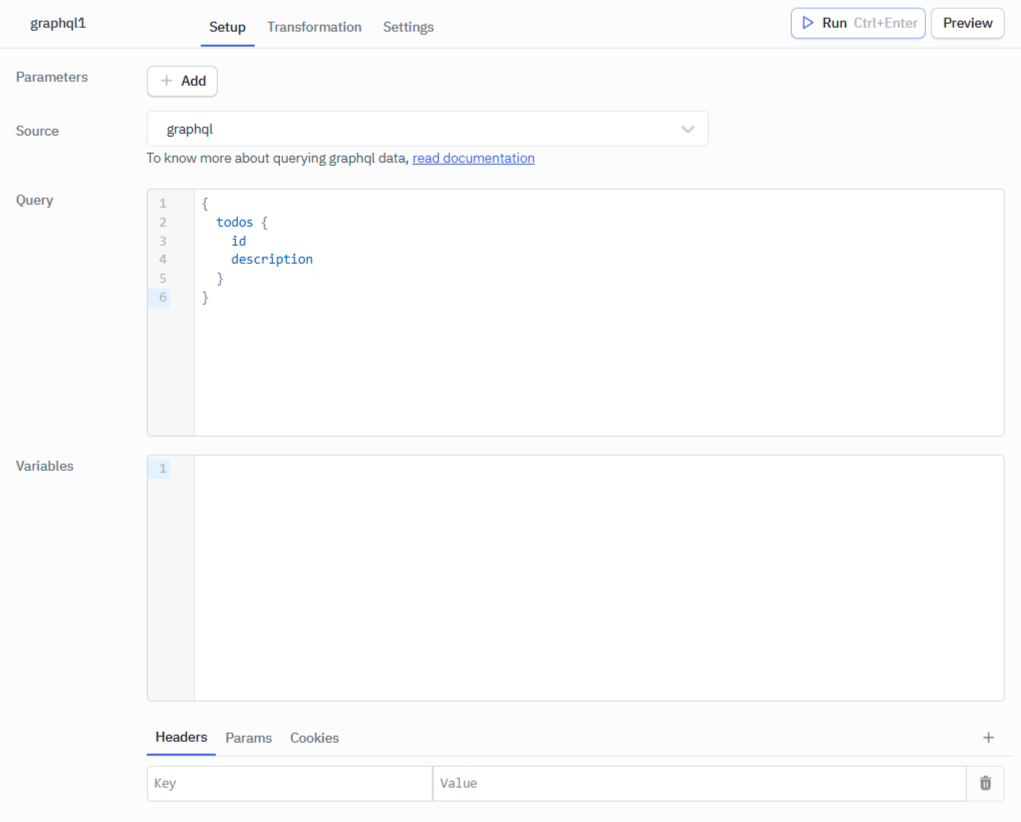

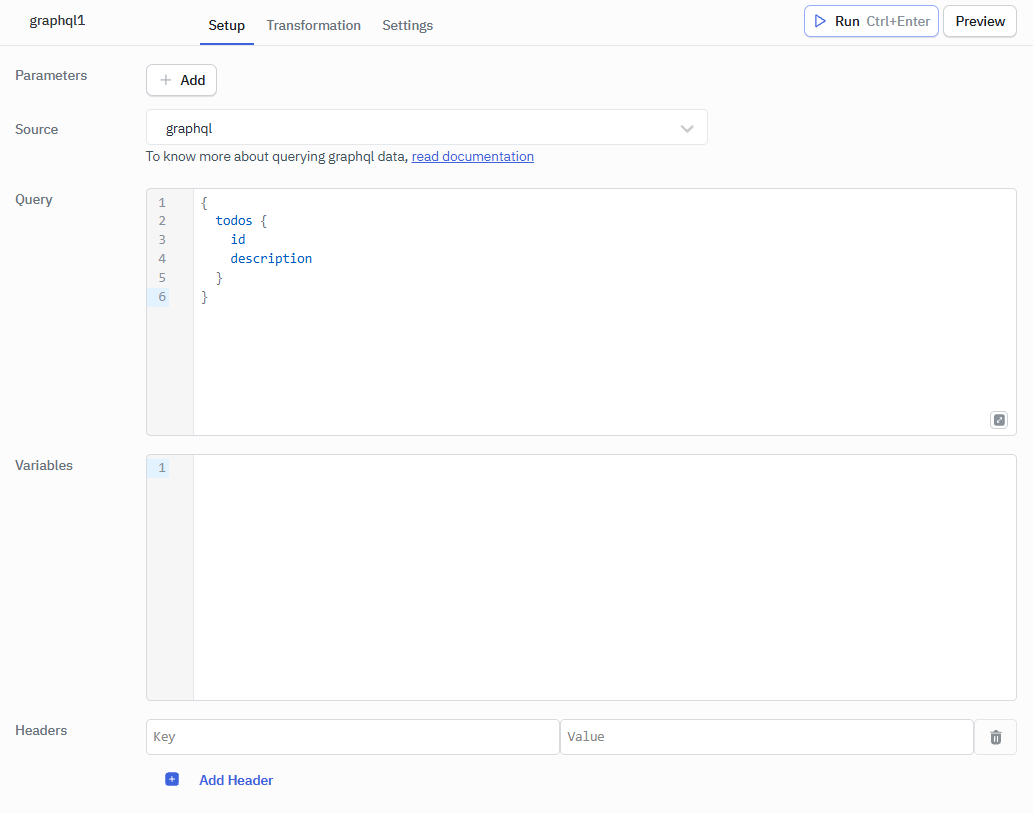

Querying GraphQL

1. Click on + button of the query manager at the bottom panel of the editor.
2. Select the GraphQL datasource added in previous step.
3. Add the Query.
4. Click on the Preview button to preview the output or Click on the Run button to create and trigger the query.

Required Parameters

• Query

Optional Parameters

• Variables
• Headers
• Params
• Cookies

Example

{
  todos {
    id
    description
  }
}

tip

Query results can be transformed using transformations. Read our transformations documentation to see how: link

Metadata

Metadata is additional information about the data returned by the GraphQL query. It includes details such as the request URL, method, headers, and response status code. You can access this information using the metadata object. REST API. The metadata can be accessed within queries and components using the {{queries.<queryname>.metadata}} syntax.

info

While accessing the properties of the metadata object, which contains a hyphen, you can use the bracket notation. For example, to access the content-length property, you can use {{queries.graphql1.metadata.request.headers["content-length"]}} or {{queries.graphql1.metadata.request.headers."content-length"}}.

Example Metadata

{
  "request": {
    "url": "https://swapi-graphql.netlify.app/.netlify/functions/index?testParam=valueParam",
    "method": "POST",
    "headers": {
      "user-agent": "got (https://github.com/sindresorhus/got)",
      "header1key": "Header1value",
      "content-type": "application/json",
      "content-length": "275",
      "accept-encoding": "gzip, deflate, br"
    },
    "params": {
      "testParam": "valueParam"
    }
  },
  "response": {
    "statusCode": 200,
    "headers": {
      "access-control-allow-origin": "*",
      "age": "0",
      "cache-control": "no-cache",
      "cache-status": ""Netlify Durable"; fwd=method, "Netlify Edge"; fwd=method",
      "content-encoding": "br",
      "content-length": "840",
      "content-type": "application/json; charset=utf-8",
      "date": "Fri, 13 Sep 2024 06:38:27 GMT",
      "etag": "W/"18ad-ZANyCoLSJjHWg3k1SaMp6gH/gdQ"",
      "netlify-vary": "query",
      "server": "[REDACTED]",
      "strict-transport-security": "max-age=31536000; includeSubDomains; preload",
      "vary": "Accept-Encoding",
      "x-nf-request-id": "01J7N1NG25V8Q9GY51RH11ACTN",
      "x-powered-by": "Express",
      "connection": "close"
    }
  }
}
